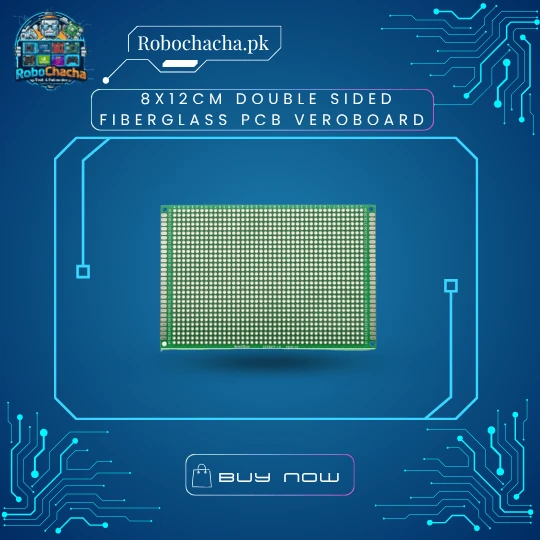

8x12cm Double Sided Fiberglass PCB Veroboard – FR-4 Universal Prototype Board for DIY Electronics

Overview

The 8x12cm Double-Sided Fibreglass PCB is a premium universal prototyping board designed for permanent circuit assembly. Made from high-strength FR-4 fibreglass, this board offers far better heat resistance and durability than standard phenolic (paper-based) boards. The double-sided design allows for complex routing on both the top and bottom layers, effectively doubling your available design space without increasing the board’s footprint.

Key Features

• Plated Through-Holes (PTH): Solder flows through the hole to connect both sides, ensuring your components are held securely and making desoldering much safer for the copper pads.

• Premium FR-4 Fibreglass: Fire-retardant and moisture-resistant material that won’t warp or snap under the weight of heavy components.

• Pre-Tinned Pads: The copper is coated with a thin layer of tin to prevent oxidation and ensure smooth, fast soldering.

• Standard 2.54mm Grid: Precisely drilled holes compatible with all DIP integrated circuits, sensors, and headers.

• Reference Markings: Features a printed coordinate grid (Letters and Numbers) on both sides to help you track your layout during complex builds.

Technical Specifications
