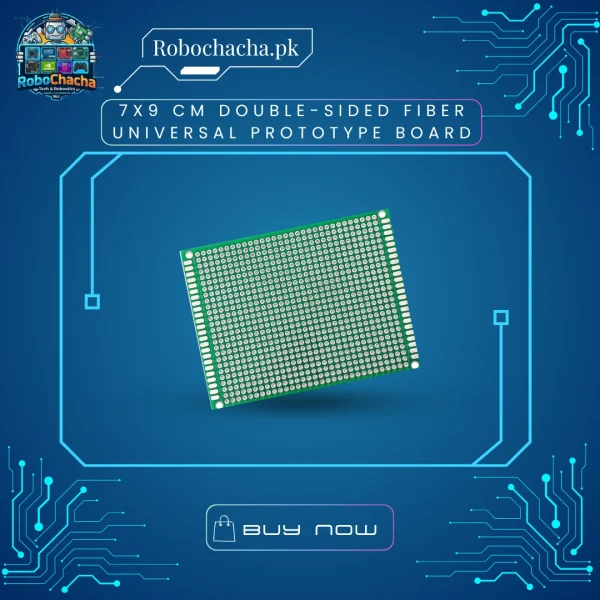

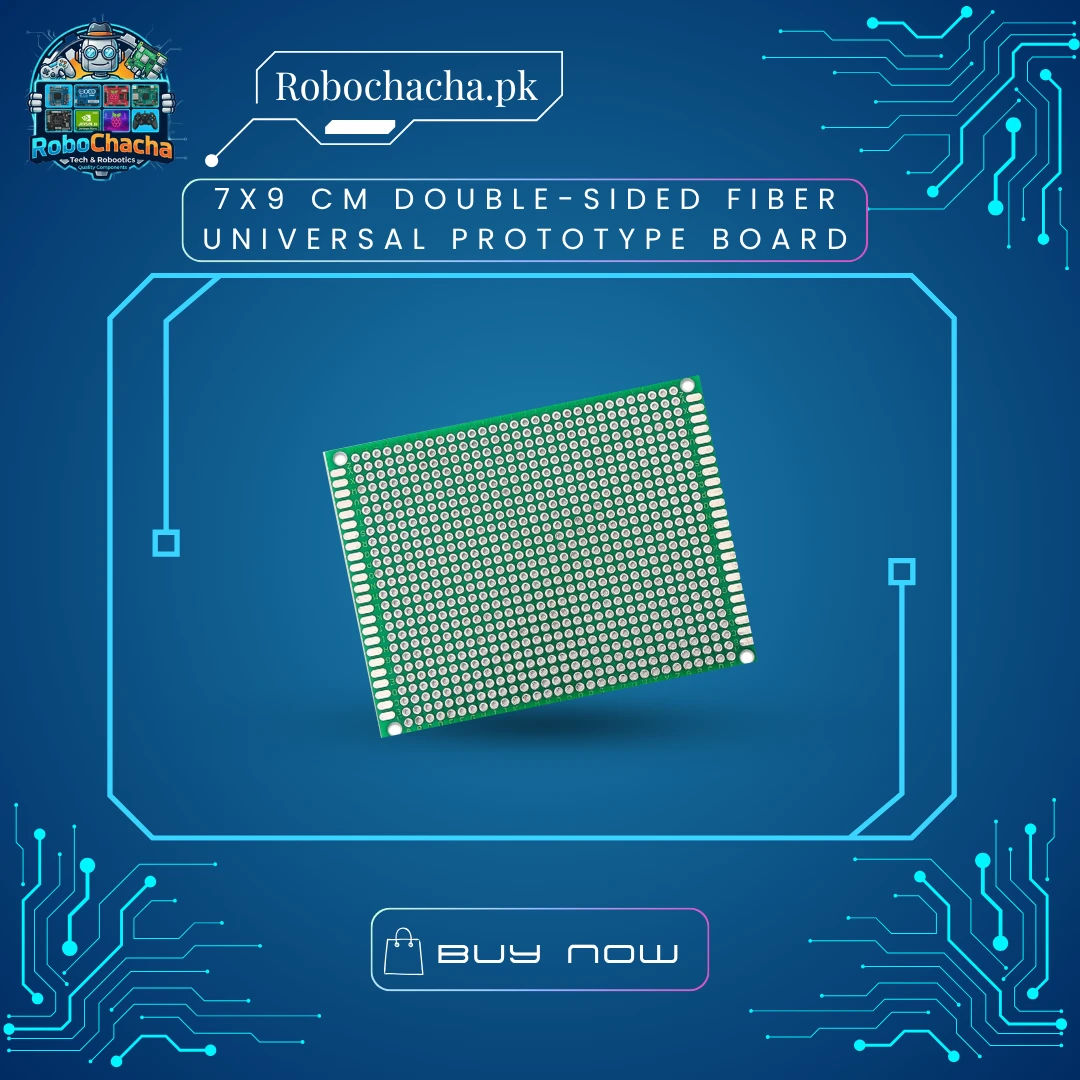

Stop wasting time on fragile single-sided paper boards. Our 7×9 cm Green Fibre Universal PCB is made from industrial-grade FR4 Fiberglass. This board is double-sided, meaning you can solder components on both sides and create complex multi-layer-style circuits. The holes are pre-tinned and plated-through, making them extremely resistant to heat—perfect for beginners who might spend a little too long with the soldering iron!
Key Features
Double-Sided Design: Solder on both sides to double your component density.
Premium FR4 Material: Rigid, non-flammable fiberglass that doesn’t warp or snap easily.
Tinned Plated-Through Holes: Ensures excellent electrical conductivity and prevents the copper pads from lifting.
Standard 2.54mm Pitch: Compatible with all standard ICs, Transistors, Arduinos, and Sensors.
Pre-Drilled Corner Holes: Four 2mm mounting holes make it easy to screw your finished project into an enclosure.
Technical Specifications
Feature
Specification
Dimensions
70mm x 90mm (7×9 cm)
Base Material
FR4 Fiberglass
Thickness
1.6mm (Standard)
Hole Pitch
2.54mm (0.1 inch)
Number of Holes
~720 Holes (24 x 30 grid)
Finish
Green Solder Mask with Tinned Pads
Why pay more for Fiber (FR4) over Paper (Phenolic)?
Durability: Fiber boards don’t crack when dropped.
Heat Resistance: The copper pads won’t fall off if you have to desolder a component.
Longevity: Unlike paper boards, FR4 does not absorb moisture, preventing corrosion over time.
Weight
2000 g
Dimensions
15 × 10 × 5 cm
