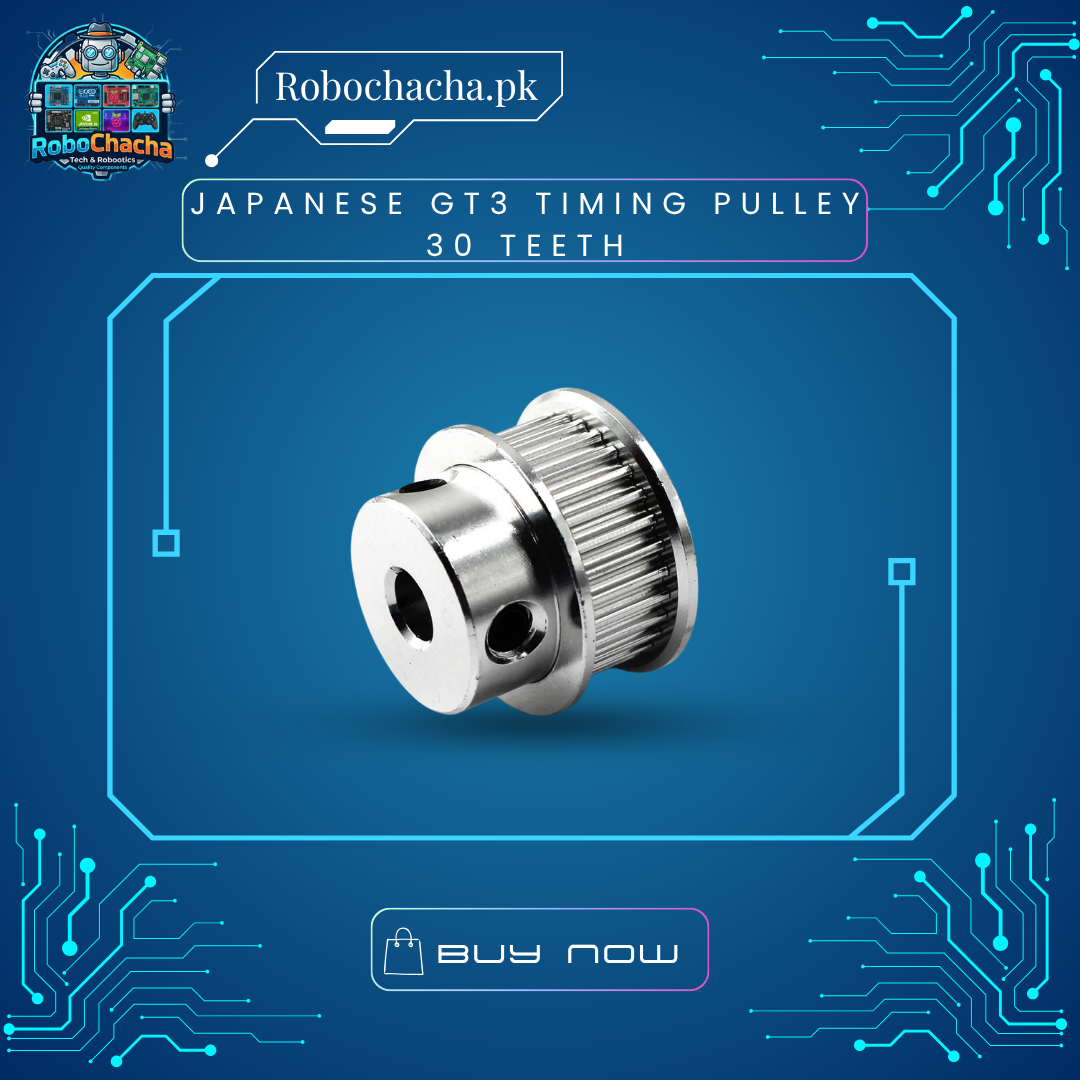

Japanese GT3 Timing Pulley 30 Teeth – 3mm Pitch 6.35mm Bore Aluminum Drive Wheel for NEMA 23 CNC

Overview

The Japanese Style GT3 30T Timing Pulley is engineered for high-accuracy, high-load linear positioning applications. Utilizing a $3\text{mm}$ curvilinear tooth profile (GT3), this pulley provides a larger contact surface area and deeper engagement compared to standard GT2 variants. This eliminates belt ratcheting, minimizes backlash, and allows for significantly higher power transmission. Machined with a precise $6.35\text{mm}$ inner bore and dual set-screws, it locks perfectly onto 1/4  stepper shafts, ensuring zero slip during high-acceleration industrial automation tasks.

Key Features

• Advanced GT3 Profile: Optimized $3\text{mm}$ pitch profile handles larger mechanical loads and drastically reduces backlash over traditional trapezoidal styles.

• Precision 6.35mm Bore: Tailor-made to slide directly onto standard NEMA 23 stepper motor shafts without drilling or machining.

• Premium Aluminum Construction: Lightweight yet durable aircraft-grade aluminum alloy reduces rotational inertia, saving wear on your motors.

• Dual Flanged Design: Robust side walls keep the timing belt perfectly centered, preventing edge-wear and belt run-out.

• Secure Dual Grub Screws: Pre-installed set screws tightly lock the pulley against the motor shaft flat (D-profile) for slippage-free operation.

Technical Specifications

Target Project Applications

• High-Precision CNC Routers: Driving the gantry axes with greater rigidity and speed than standard $2\text{mm}$ pitch setups.

• Laser Engravers & Plasma Cutters: Ensuring smooth, shudder-free curves at high travel velocities.

• Heavy-Duty 3D Printing / CoreXY: Ideal for oversized or industrial-grade printers carrying heavy toolheads.
