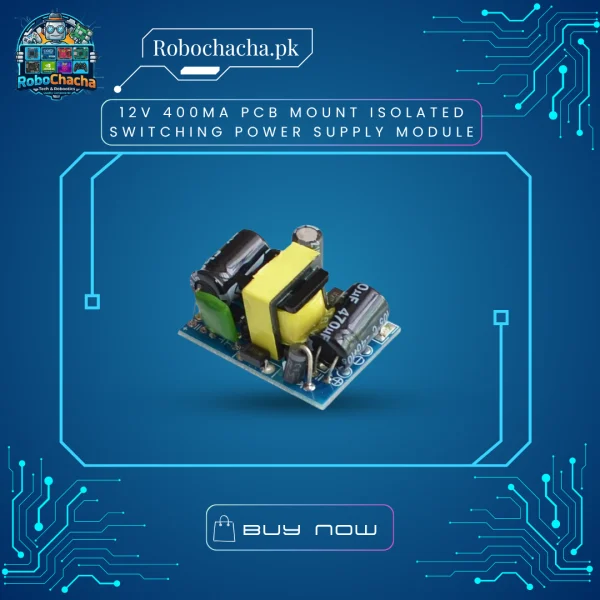

Professional 12V 400mA AC-DC Isolated Switching Power Supply Module – PCB Mount Step-Down Buck Converter

Overview

The Professional 12V 400mA PCB-Mount Power Supply is an enclosed, miniature step-down switching regulator (SMPS) designed for direct integration onto printed circuit boards. It features complete galvanic isolation between the hazardous high-voltage AC mains input and the safe, low-voltage DC output rail.

With a stable 12 V output, this module is specifically engineered to power 12 V electromagnetic relays, cooling fans, and communication nodes, while providing an ideal front-end rail that can be stepped down further (via local LDOs) for sensitive microcontrollers like the ESP32 or STM32.

Key Features

• Industrial Galvanic Isolation: Keeps high-voltage AC surges completely isolated from your low-voltage logic side, preventing catastrophic microcontroller failures.

• Ultra-Compact Open/Encapsulated Design: Miniature footprint optimized specifically to minimize board space on custom PCB prototype layouts.

• Wide Input Tolerance: Robust design reliably handles inputs from 85V AC up to 265V AC, preventing system drops during local voltage fluctuations and brownouts.

• Low Electromagnetic Interference (EMI): Integrated filtering ensures exceptionally low output ripple and noise, keeping analog sensor readings steady.

• Comprehensive Safety Suite: Built-in safeguards protect against output short-circuits, over-current conditions, and overheating.

Technical Specification

5. Application & Wiring Guide

• AC Inputs (Pins L / N): Connect directly to your 220 V AC Live and Neutral household or industrial supply lines. Polarity is reversible at the input.

• DC Outputs (Pins +V / -V): Delivers the regulated +12 V DC power rail.

• The Smart Hierarchy Layout: For professional IoT applications, feed the 12 V output directly to your board’s 12V relay coils. Simultaneously, tap into this 12 V line and feed it into an AMS1117-3.3V or LM2596 step-down regulator to power your microcontrollers. This dual-stage layout shields your digital processors from inductive relay switching noise!
