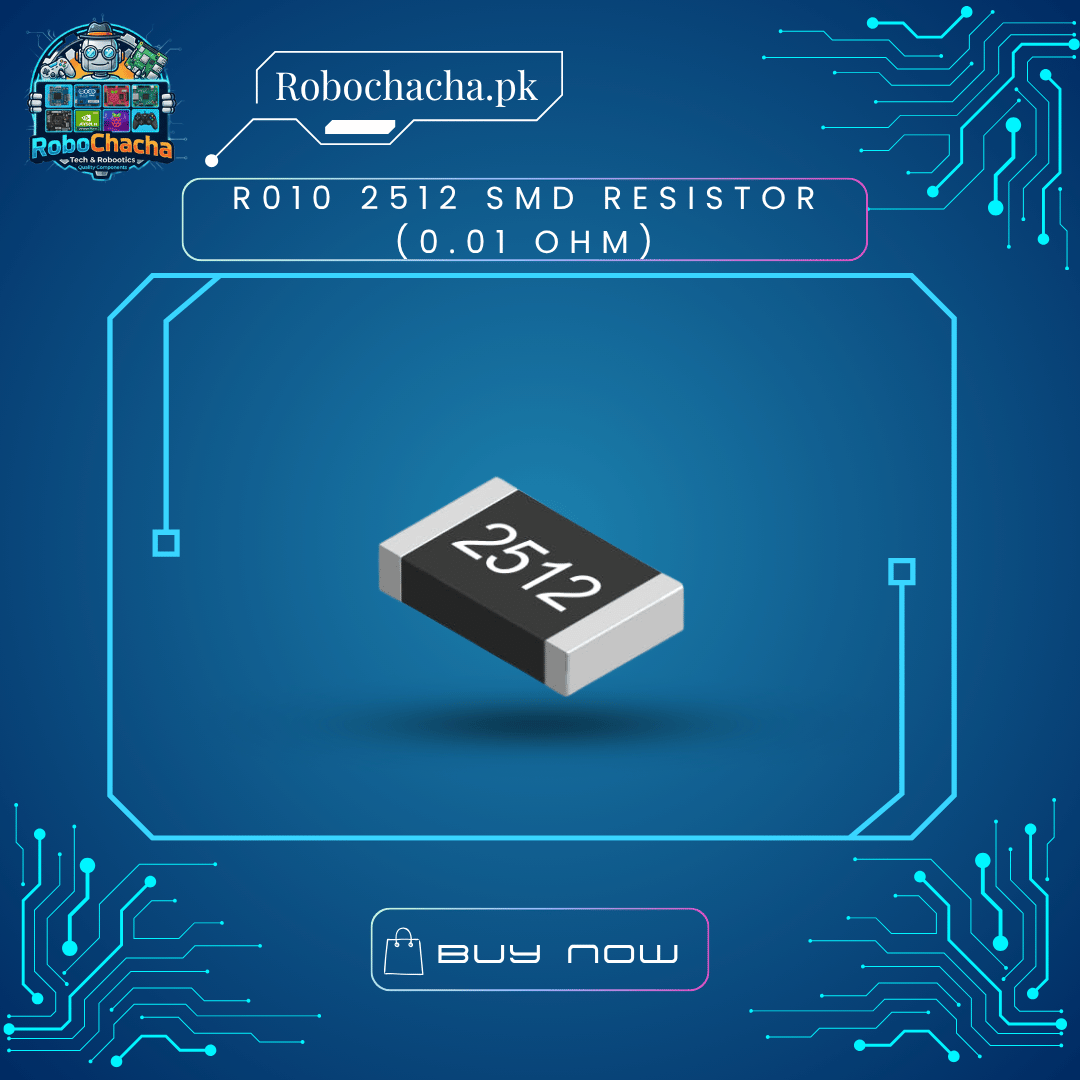

R010 2512 SMD Resistor (0.01 Ohm) – 1W High-Current Sensing Resistor

Overview

The R010 2512 SMD Resistor is a low-ohmic “shunt” resistor designed for applications where high current must be monitored with minimal voltage drop. The “R010” marking denotes a resistance of 0.01 Ohm (10 m Omega), and the robust 2512 package size ensures it can dissipate up to 1 Watt of power, making it a reliable choice for high-current paths in your electronic designs.

Key Features

• Ultra-Low Resistance: Precision $0.01 \Omega$ value minimizes power loss during high-current monitoring.

• High Power Handling: Rated for 1W, allowing it to withstand significant current flow without degradation.

• Compact SMD Package: Standard 2512 footprint saves valuable space on dense PCB layouts.

• High Thermal Stability: Designed to maintain consistent performance even under fluctuating thermal loads.

Technical Specifications

Ideal Applications

• Current Shunts: Used in Battery Management Systems (BMS) for precise current sensing.

• Motor Control: Essential for stall detection and over-current protection circuits in robotics.

• Power Supplies: Accurate feedback for output current limiting and regulation.

• Energy Management: High-efficiency monitoring in solar charge controllers.
