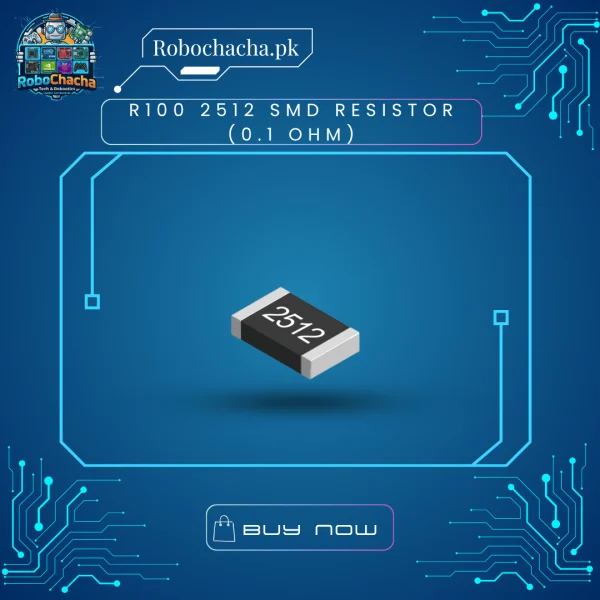

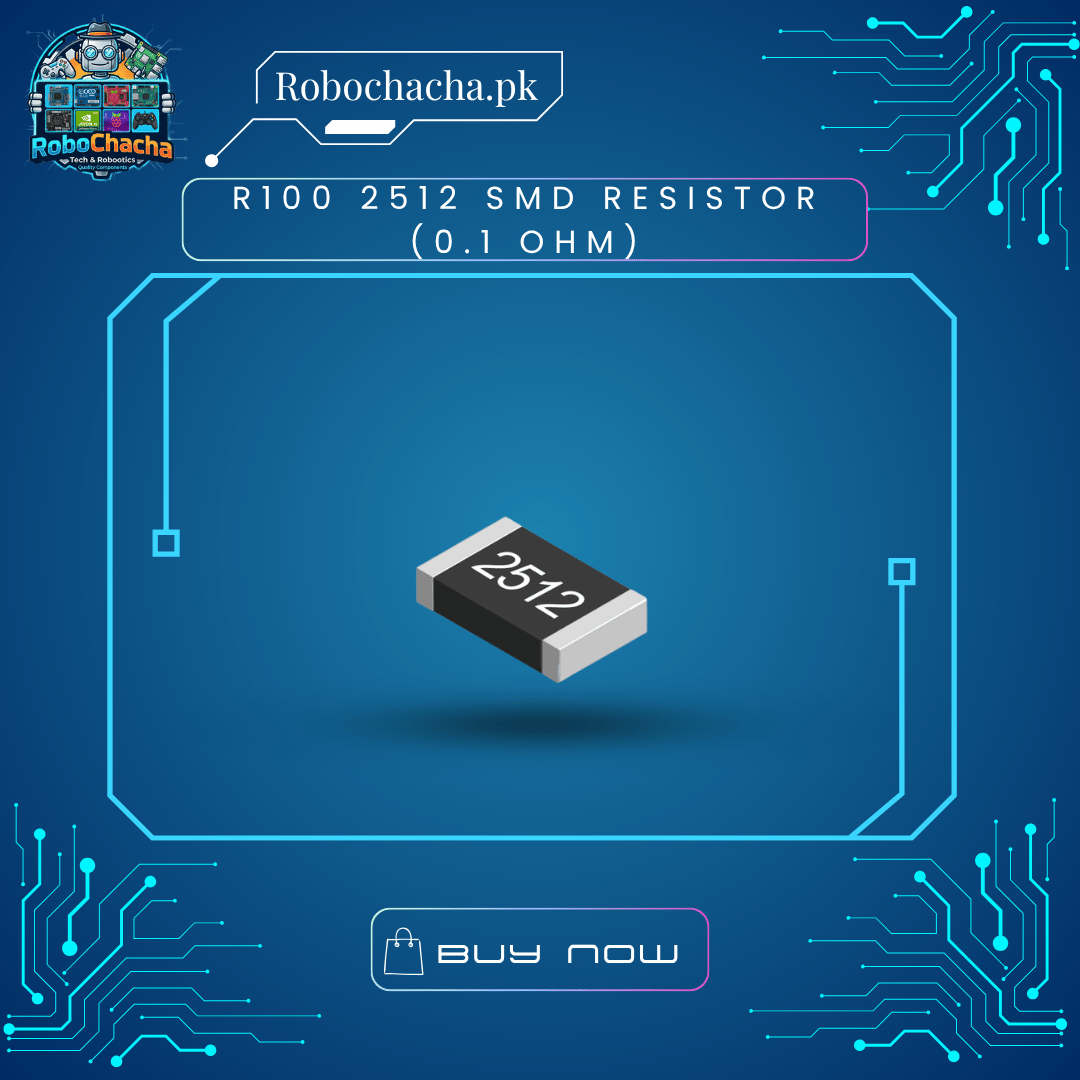

R100 2512 SMD Resistor (0.1 Ohm) – 1W High-Power Current Sensing Resistor

Overview

The R100 2512 SMD Resistor is a low-resistance, high-power component specifically designed for current-sensing applications. The “R100” code indicates a resistance value of 0.1 Ohm (100 m Omega), and the “2512” package size (6.35mm x 3.18mm) is optimized for handling higher power dissipation compared to standard low-profile resistors. This component is a staple for engineers building shunt-based current monitoring circuits.

Key Features

• Low Resistance: Precise 0.1 Omega value, perfect for shunt resistors in current measurement circuits.

• High Power Handling: Rated for 1W of power dissipation, allowing it to handle higher currents without overheating.

• Compact Form Factor: Standard 2512 metric package provides a balance between high power dissipation and space-saving PCB design.

• High Stability: Excellent thermal performance, ensuring reliable operation in power-intensive circuits.

Technical Specifications

Ideal Applications

• Current Sensing: Ideal for use with ICs like the INA219 or other shunt-based monitors.

• Power Supplies: Used in feedback loops for output current regulation.

• Battery Management: Monitoring charging/discharging currents in BMS circuits.

• Motor Drivers: Detecting stall conditions or overload current in motor controllers.
