Overview

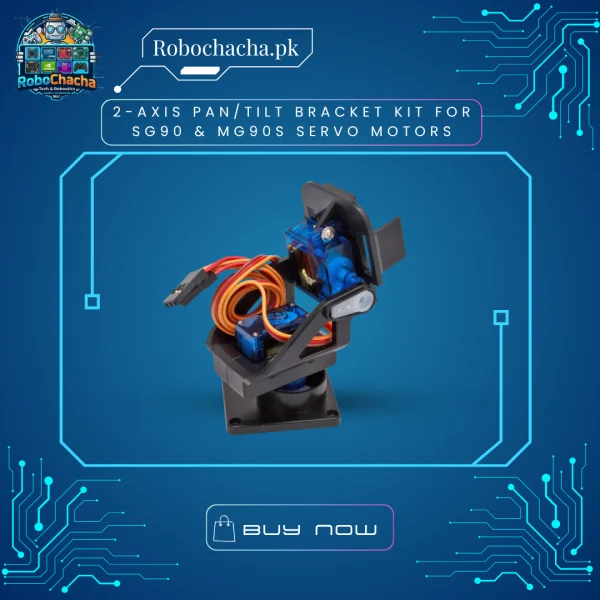

The 2-Axis Servo Pan/Tilt Bracket is a lightweight, durable plastic assembly designed to provide 180 degrees of movement on both the horizontal (Pan) and vertical (Tilt) axes. This mechanical kit is specifically molded to fit the industry-standard SG90 (9g Nylon Gear) and MG90S (9g Metal Gear) servo motors. Whether you are mounting an FPV camera for a drone or a HC-SR04 Ultrasonic sensor for an obstacle-avoiding robot, this bracket provides the smooth, multi-directional movement your project needs.
Key Features
Dual-Axis Freedom: Enables your sensors or cameras to scan a full room without moving the entire robot base.
Lightweight & Tough: Made from high-quality matte black plastic to keep the weight low while maintaining structural rigidity.
Perfect Fit: Specifically designed for 9g servos (SG90/MG90S). No drilling or gluing required.
Versatile Mounting: Features a flat top plate with pre-drilled holes, ideal for mounting camera modules or ultrasonic sensors.
Technical Specifications
| Feature | Specification |
| Material | Nylon / ABS Plastic |
| Compatibility | SG90, MG90, MG90S (9g Servos) |
| Movement Range | 180° Pan & 180° Tilt (Servo dependent) |
| Base Dimensions | 37mm x 33mm |
| Total Height | Approx. 65mm (Assembled) |
| Weight | ~15g (Hardware only, without servos) |
| Hardware Included | Plastic brackets + screws for assembly |
Ideal Applications
Object Tracking: Pair with an ESP32-CAM to track faces or colors.
Obstacle Avoidance: Mount an Ultrasonic sensor to help your robot “look” for a clear path.
Laser Turrets: Create a fun interactive laser pointer for pets.
Antenna Tracking: Point your high-gain antennas toward a moving drone or satellite.
