Overview

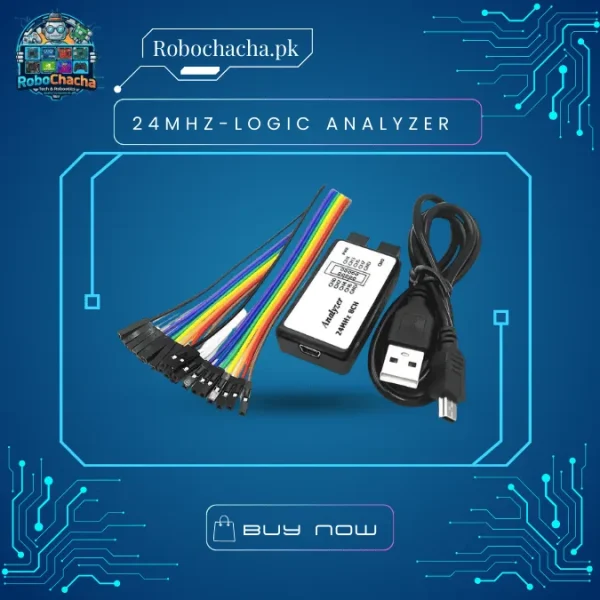

The 24MHz 8-Channel USB Logic Analyzer is an essential diagnostic tool for identifying and troubleshooting digital signal issues. It allows you to “see” the communication between components by capturing data at high speeds and converting it into visual timing diagrams on your PC. It is a cost-effective alternative to expensive oscilloscopes for debugging UART, I2C, SPI, and many other protocols.
Key Features
8-Channel Monitoring: Capture up to 8 independent digital signals simultaneously for complex system analysis.
Adjustable Sampling Rates: Configurable up to 24MHz, providing the flexibility needed for various communication speeds.
Advanced Protocol Decoding: Automatically decodes 20+ protocols including CAN, 1-Wire, and I2S when used with compatible software.
Broad OS Support: Works seamlessly across Windows, Mac OS X, Linux, and Android platforms.
Safety & Protection: Features built-in logic-level protection for 3.3V and 5V systems.
Applications in Pakistan
Microcontroller Debugging: Ideal for troubleshooting Arduino, STM32, and ESP32 projects in university labs.
Embedded System Design: A must-have for developers working on FPGA or ARM-based industrial prototypes.
Digital Repair Work: Used by technicians to diagnose faulty serial lines in routers, laptops, and automotive electronics.
Technical Specifications
| Feature | Specification |
| Sampling Rate | Up to 24MHz (Adjustable: 24MHz, 16MHz, 12MHz, etc.) |
| Channels | 8 Digital Channels |
| Voltage Range | 0V to 5.5V (Logic-High: >2.0V, Logic-Low: <0.8V) |
| Input Impedance | 100K Ohm |
| Software Compatibility | Sigrok PulseView, Saleae Logic |
| Connection | Mini-USB Interface |
Technical Documentation: 24MHz Logic Analyzer Datasheet (PDF)
