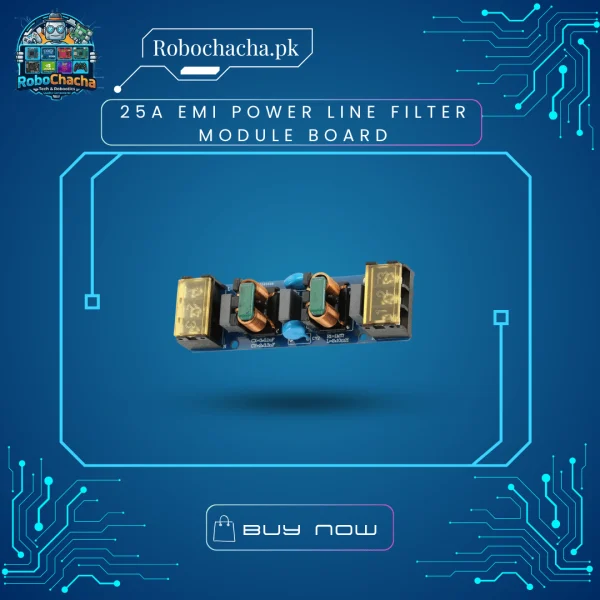

25A EMI Power Line Filter Module Board – High-Frequency Noise Suppressor

Overview

The 25A EMI Filter Module Board is an effective passive electronic component designed to clean up AC or DC power lines. By utilizing a combination of high-grade inductors and capacitors, it blocks unwanted high-frequency noise traveling along power conductors, protecting sensitive microprocessors, audio amplifiers, and motor controllers from erratic behavior.

Key Features

• High Current Capacity: Rated to handle up to 25 Amps of continuous load current for heavy-duty applications.

• Dual-Stage Filtering: Effectively suppresses both differential and common-mode electromagnetic interference.

• Stable Power Delivery: Prevents external noise from entering your device and stops internal switching noise from feeding back into the main power line.

• Robust Terminal Blocks: Secure screw-terminal layout for safe and reliable high-current wiring connections.

Technical Specifications

Ideal Applications

• Audio Equipment: Eliminating hum and high-frequency buzzing in high-end amplifier power lines.

• CNC & Industrial Machinery: Stopping motor driver noise from disrupting control boards.

• Switch-Mode Power Supplies (SMPS): Clean power conditioning for custom electronics builds.
