Overview

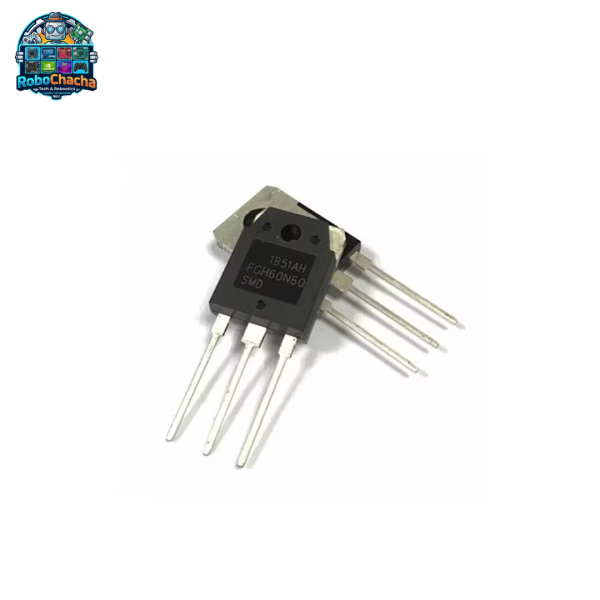

The 60N60 (commonly found under prefixes like FGH60N60, HGTG60N60, or SGH60N60) is a 600V, 60A Insulated Gate Bipolar Transistor engineered for high-speed, high-voltage switching applications. It seamlessly blends the effortless gate control of a MOSFET with the heavy-duty current handling capability of a bipolar transistor. Housed in a rugged TO-247 package, this components is a staple among Pakistani electronics technicians for repairing household induction stoves, power supplies, and solar inverter stages.
Key Features
Field Stop Trench Technology: Offers low switching losses and a very low collector-emitter saturation voltage ($V_{CE(sat)}$) to boost overall system efficiency.
Built-in Co-Packaged Diode: Most variants feature an integrated fast-recovery anti-parallel diode to protect the transistor from inductive voltage spikes.
Excellent Thermal Performance: The large TO-247 form factor ensures efficient heat dissipation when securely clamped to a cooling block.
High Input Impedance: Can be driven directly by low-power control circuitry or gate-driver ICs.
Technical Specifications
| Feature | Specification |
| Transistor Type | IGBT (Insulated Gate Bipolar Transistor) |
| Collector-Emitter Voltage ($V_{CES}$) | 600 V |
| Continuous Collector Current ($I_C$) | 120A (at 25°C) | 60A (at 100°C) |
| Gate-Emitter Voltage ($V_{GES}$) | ±20 V |
| Saturation Voltage ($V_{CE(sat)}$) | ~1.9V (Typical at 60A) |
| Switching Speed | High Speed (Optimized for 5kHz to 40kHz) |
| Package Style | TO-247 (Through-Hole) |
Primary Applications
Induction Cooker Repair: The main resonant switching component inside local and imported induction stoves.
Solar Inverters & UPS: Used in mid-tier hybrid solar setups and online UPS switching banks.
Welding Inverters: Handles high-frequency current pulsing in compact arc welding machines.
Uninterruptible Power Supplies (SMPS): Ideal for heavy-duty industrial server power supplies.
