Overview

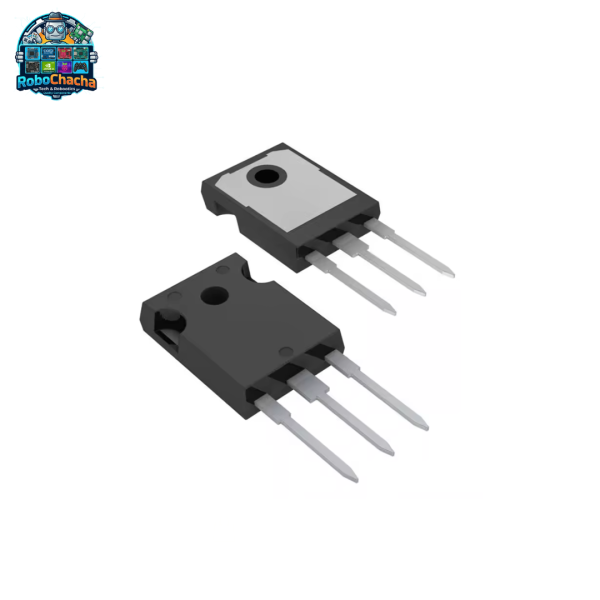

The 60T60 (commonly found under prefixes like FHA60T60, CRG60T60, or FGH60T65) is a heavy-duty, high-performance Insulated Gate Bipolar Transistor engineered for high-density power conversion. Housed in industry-standard TO-247 or TO-3P through-hole packages, it functions as a highly durable, direct replacement part for high-stress switching applications. If your technician customers are troubleshooting commercial solar array stages or industrial welding tools that instantly blow internal fuses or trip mains breakers under full load, this chip is the definitive fix.
Key Features
Field Stop Trench Architecture: Engineered specifically to minimize switching delays and lower conduction losses, significantly bumping up overall system power efficiency.
Co-Packaged Fast Recovery Diode: Includes a built-in ultra-fast recovery anti-parallel diode to safely absorb aggressive inductive flyback voltage spikes.
High Switching Frequency Performance: Handles rapid, high-speed PWM transitions smoothly, stabilizing up to 40kHz configurations without thermal breakdown.
Rugged Industrial Enclosure: Thick metal backing plate optimizes structural thermal transfer directly into external aluminum cooling blocks.
Technical Specifications
| Feature | Specification |
| Transistor Type | IGBT (Insulated Gate Bipolar Transistor) |
| Collector-Emitter Voltage ($V_{CES}$) | 600V to 650V (Variant dependent) |
| Continuous Collector Current ($I_C$) | 120A (at 25°C) | 60A (at 100°C) |
| Gate-Emitter Voltage ($V_{GES}$) | ±20V (Transient up to ±30V) |
| Collector-Emitter Saturation Voltage | ~1.6V to 2.2V (Typical at 60A) |
| Package Style | TO-247 / TO-3P (Through-Hole) |
| Max Operating Temperature | 175°C |
Primary Applications
Inverter Welding Machines: The primary switching core found in modern electronic stick, TIG, and MIG welding plants.
Solar Hybrid Inverters: Manages heavy DC-to-AC conversion cycles inside mainstream residential and commercial solar installations.
Uninterruptible Power Supplies (UPS): Deployed inside online UPS configurations for seamless, high-current backup switching.
High-Power SMPS & PFC Circuits: Smooths out energy efficiency inside large-scale server power banks and telecom infrastructure.
