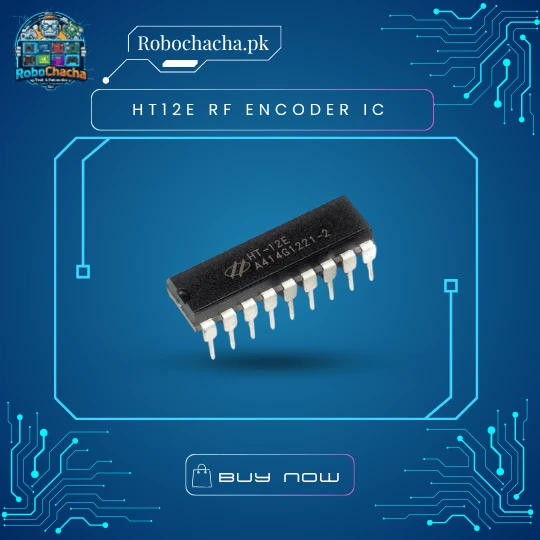

HT12E RF Encoder IC – 2^12 Series Remote Control Encoder DIP-18

Overview
The HT12E is a CMOS LSI encoder designed for remote control system applications. It encodes information consisting of $N$ address bits and $12-N$ data bits. Each address and data input can be set to one of two logic states. The programmed address and data are transmitted along with header bits via RF or infrared communication. This IC is especially popular among students because it enables wireless communication without requiring a microcontroller.

Key Features

• 12-Bit Encoding: 8 address bits and 4 data bits, allowing up to 256 unique combinations.
• Low Power Consumption: CMOS technology ensures high noise immunity and low standby current.
• No Microcontroller Required: Directly interface buttons with data pins for transmission.
• Wide Operating Voltage: Operates from 2.4V to 12V DC.
• Built-in Oscillator: Requires only a single external resistor (typically 1MΩ) to set frequency.

Technical Specifications

• Wireless RC Cars: Control movement (Forward, Backward, Left, Right).
• Home Security Systems: Wireless panic buttons and door sensors.
• Garage Door Openers: Secure access using address matching.
• Remote Switching: Control lights, fans, or appliances wirelessly.
