Overview

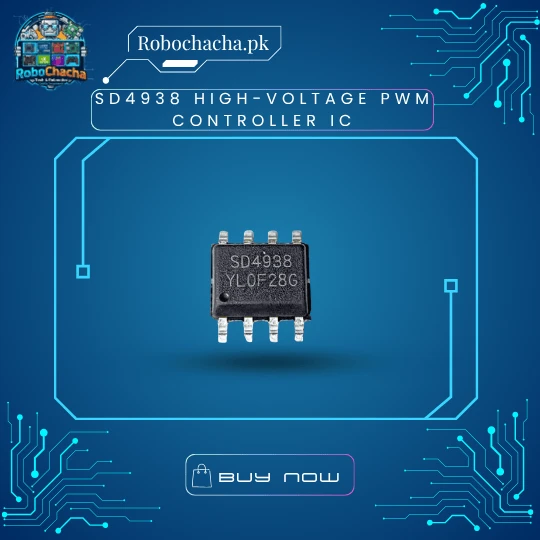

The SD4938 is a high-efficiency, current-mode PWM controller with an internal high-voltage power MOSFET. It is designed to handle input voltages that would destroy standard regulators. With its 150V breakdown voltage, it provides a stable output even in noisy high-voltage environments. It is most commonly found in Electric Bike (E-Bike) 48V/60V/72V to 12V converters, LED drivers, and industrial “PoE” (Power over Ethernet) systems.
Key Features
Integrated 150V MOSFET: Eliminates the need for an external high-voltage transistor, saving PCB space.
Wide Input Range: Capable of handling massive voltage spikes common in battery-operated vehicles.
Current Mode Control: Provides excellent line and load transient response with cycle-by-cycle current limiting.
Built-in Protections: Includes Under-Voltage Lockout (UVLO), Over-Temperature Protection (OTP), and Short-Circuit Protection.
High Efficiency: Synchronous rectification support allows for minimal heat generation during conversion.
Technical Specifications
| Feature | Specification |
| Internal MOSFET VDS | 150V |
| Operating Current | Up to 3.0A (Depending on heatsinking) |
| Package Type | SOP-8 (Surface Mount) |
| Switching Frequency | Fixed (Internal) |
| Standby Power | Ultra-low (Excellent for battery apps) |
| Application | Non-isolated Buck Converters |
