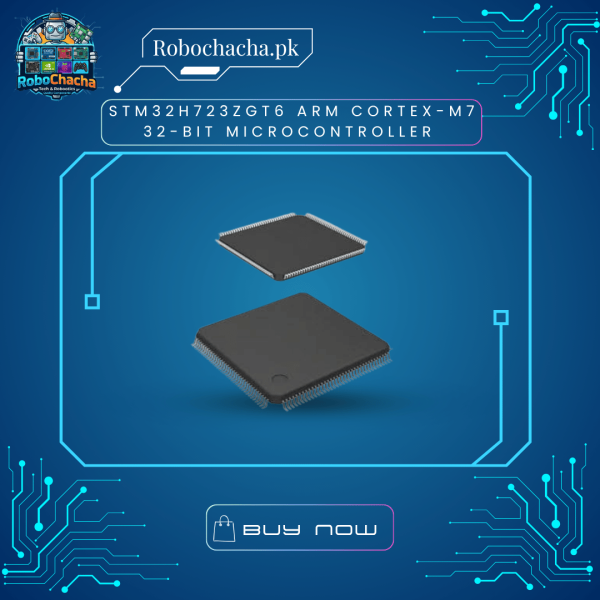

STM32H723ZGT6 ARM Cortex-M7 32-Bit Microcontroller – 550MHz, 1MB Flash, 564KB RAM LQFP-144

Overview

The STM32H723ZGT6 is part of STMicroelectronics’ high-performance H7 series, built around a 32-bit RISC ARM Cortex-M7 core with a double-precision floating-point unit (DP-FPU) and L1 cache. Operating at speeds up to 550 MHz, it delivers exceptional execution performance (2778 CoreMark) directly from embedded flash memory. It is the ideal choice for advanced robotics, motor drives, digital power supplies, and complex IoT edge nodes.

Key Features

• High-Speed Processing Core: Arm® Cortex®-M7 running up to 550 MHz with DSP instructions and 32-Kbyte instruction/data caches.

• Robust Memory Architecture: Includes 1 Mbyte of embedded Flash memory with Error Correction Code (ECC) and 564 Kbytes of RAM (featuring TCM RAM for real-time critical routines).

• Extensive Connectivity: Packed with up to 35 communication interfaces including Ethernet MAC, USB 2.0 High-Speed/Full-Speed OTG, dual FDCAN channels, multiple SPIs, I2Cs, and USARTs.

• Advanced Analog Peripherals: Features high-speed 16-bit ADCs and 12-bit DACs, making it exceptional for precision sensing and data acquisition.

• Graphic & Audio Acceleration: Equipped with a Chrom-ART Accelerator™ for enhanced graphical user interfaces and serial audio interfaces (SAI).

Technical Specifications
