Overview

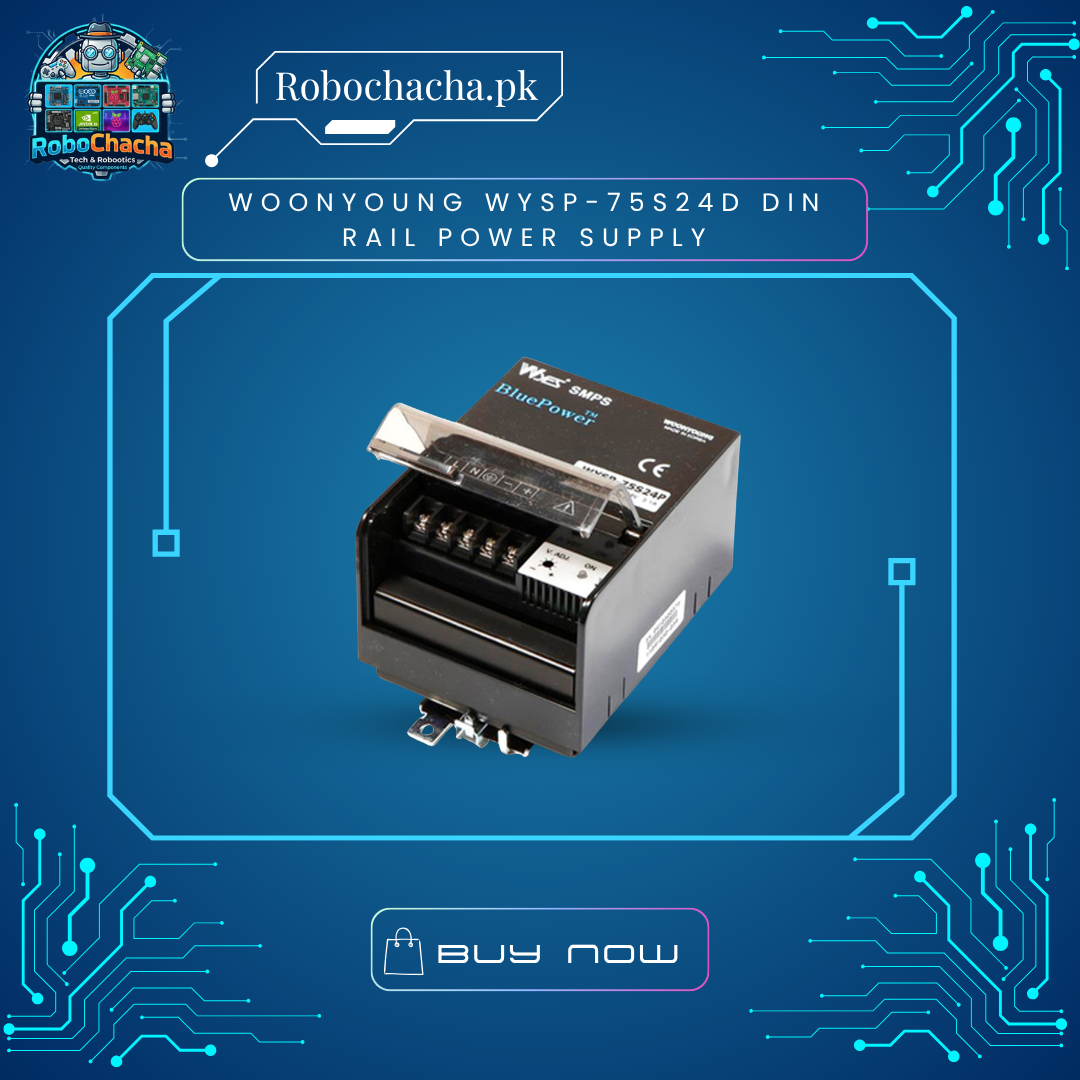

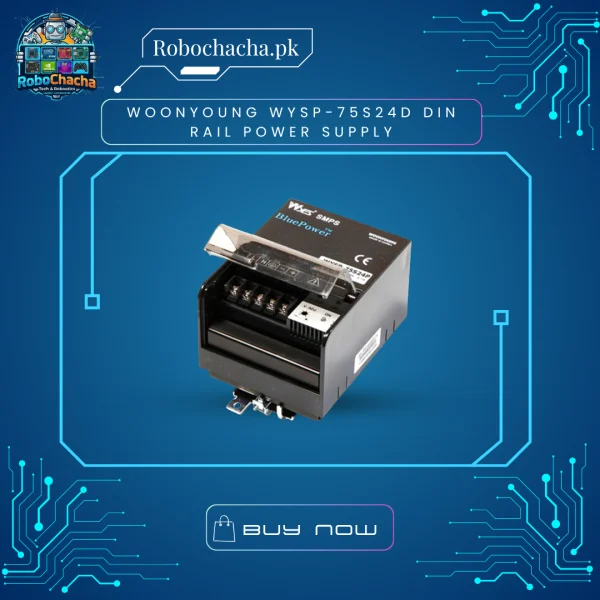

The Woonyoung WYSP-75S24D is a premium, industrial-grade single-channel Switching Mode Power Supply (SMPS) engineered for high-density, reliable DIN rail mounting. Manufactured by Woonyoung (WoonyoungMicro) in South Korea, this highly stable module delivers a precise 24VDC output at 4.1A (75W). It is an exceptional choice for engineering labs, industrial automation panels, and rugged projects requiring clean, ripple-free power for PLCs, HMI display systems, and sensitive field sensors.
Key Features
Dual-LED Diagnostics: Features a green ON LED to confirm active power delivery and a dedicated red OC (Over-Current) LED for instant visual troubleshooting if the load drops or spikes dangerously.
Precise Voltage Tuning (V-ADJ): Includes an accessible front potentiometer allowing you to fine-tune the 24V output to compensate for natural line voltage drops over long cable runs.
Compact, Space-Saving Footprint: The slim, vertical chassis profile is designed to maximize rail density, letting you pack more hardware into crowded electrical enclosures.
Robust Safety Layer: Built-in hardware isolation shields your system from short circuits, over-temperatures, and severe power spikes via an integrated inrush current limiter.
Technical Specifications
| Feature | Specification |
| Brand / Manufacturer | Woonyoung (Genuine Made in Korea) |
| Model | WYSP-75S24D |
| Output DC Voltage | 24V DC (Adjustable via V-ADJ) |
| Rated Current | 4.1 Amps (4.1A) |
| Rated Power | 75 Watts |
| Input Voltage Range | AC 85–264V (Universal Free Voltage / 50–60Hz) |
| Mounting Type | Standard TS-35 DIN Rail (35mm) |
| Protection Systems | Over-Current, Short Circuit, Over-Temperature, Inrush Limiter |
| Certifications | CE, RoHS Compliant |
Targeted Engineering Applications
PLC & Automation Cabinets: Providing clean logic power to Siemens, Delta, or Mitsubishi PLCs and HMIs.
Mechatronics & Robotics: Driving intermediate 24V DC actuators, relays, and sensor networks where voltage sag cannot be tolerated.
Solar Infrastructure Control Loops: Used in supplementary distribution boards and central inverter control setups.
