Overview

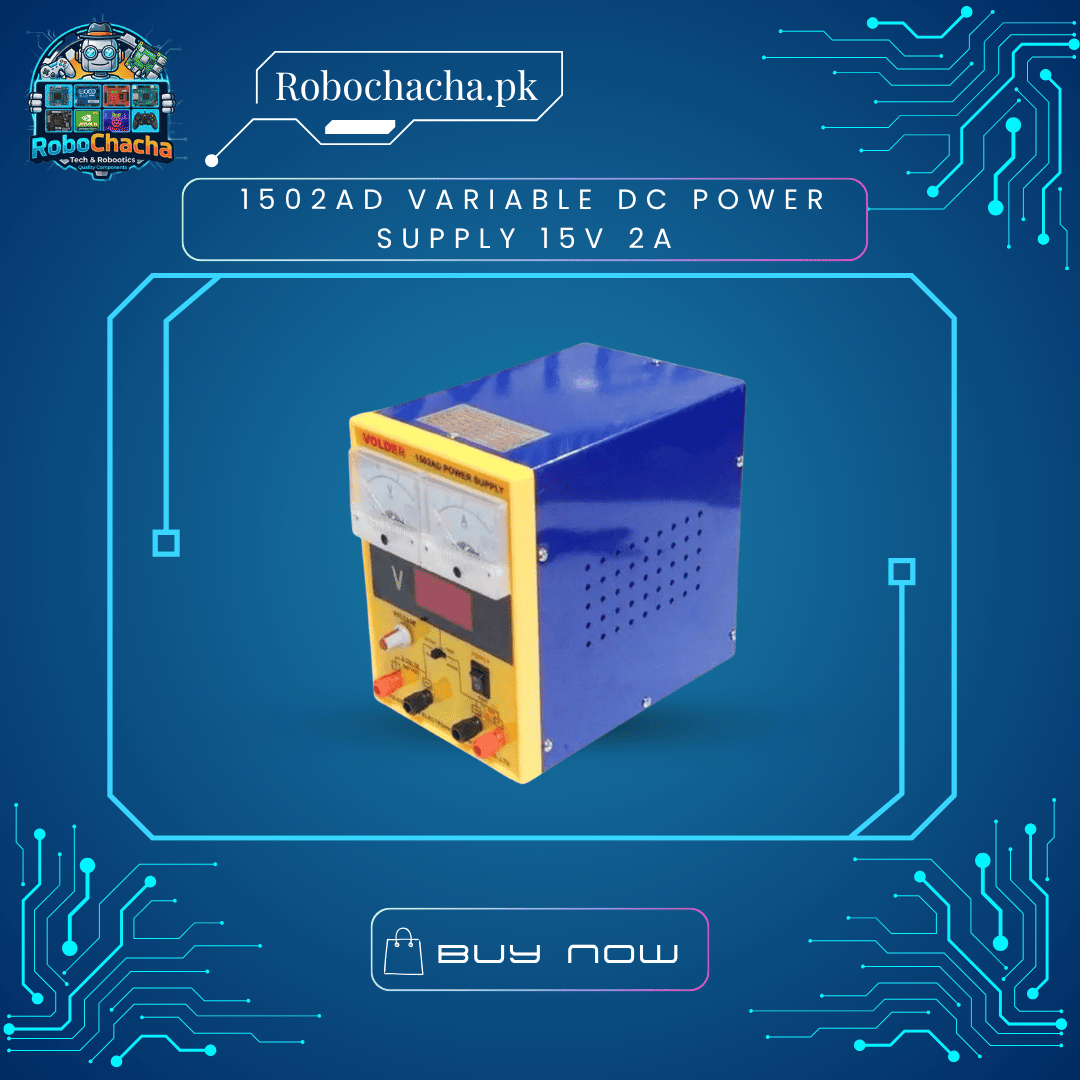

The 1502AD Variable Regulated DC Power Supply is a specialized workbench instrument optimized for consumer telecommunications diagnostics and micro-circuit engineering. Offering a highly controllable output range from $0-15\text{V}$ and accommodating current draws up to 2 A (with high-precision stabilization around 1.5 A), this linear power supply delivers ultra-clean power with negligible ripple. Beyond standard power injection, the 1502AD features an integrated GSM/RF Signal Tester that visually displays radio frequency emissions from mobile devices, making it an invaluable asset for diagnosing faulty antennas, network drops, and power-management ICs.
Key Features
Dual Digital LED Readouts: High-contrast separate screen segments show real-time output Voltage ($V$) and Amperage ($A$) simultaneously for precise tracking.
Integrated GSM/RF Signal Detector: Senses radio frequencies and cellular transmissions nearby, using a front-panel visual indicator array to show if a phone’s wireless modem is actively transmitting data.
Instantaneous Short-Circuit Auto-Cutoff: Outfitted with an ultra-fast, sound-alarmed overcurrent safety latch that cuts power delivery the millisecond a motherboard short is encountered, protecting delicate SMD chips from burning out.
Fine & Coarse Voltage Controls: Split adjustment dials let you lock down exact voltage targets like 3.7V (standard lithium battery simulation) or 4.2V with sub-volt precision.
Ultra-Quiet Linear Regulation: The heavy-duty internal copper transformer operates silently, ensuring high efficiency and zero high-frequency switching noise on your test lines.
Technical Specifications
| Feature | Specification |
| Model Platform | 1502AD Series |
| Output Voltage Range | 0 to 15 V DC (Continuously Adjustable) |
| Output Current Range | 0 to 2 A Maximum (1.5 A continuous rated load) |
| Voltage Stability | le 0.01 + 2\mV |
| Load Recovery Time | le 100 mu\s |
| Ripple & Noise Spectrum | le 1 MVRMS (Very clean line output) |
| Special Diagnostic Features | Audio Short Circuit Alarm, RF Signal Strength Meter |
| Input Supply Voltage | 220V AC pm10 % 50Hz (Standard Pakistan Domestic Wall Power) |
Essential Workbench Applications
Mobile Power Simulation: Booting up iPhones, iPads, and Android smartphones directly through their battery terminal connectors to isolate broken power buttons from dead batteries.
Short Circuit Detection (Voltage Injection): Running low-voltage rails into dead motherboards to find shorted, overheating SMD capacitors via thermal cameras or rosin flux smoke.
Wireless Antenna Validation: Testing whether an RF transceiver module is actually broadcasting signals without expensive laboratory spectrum analyzers.
