Overview

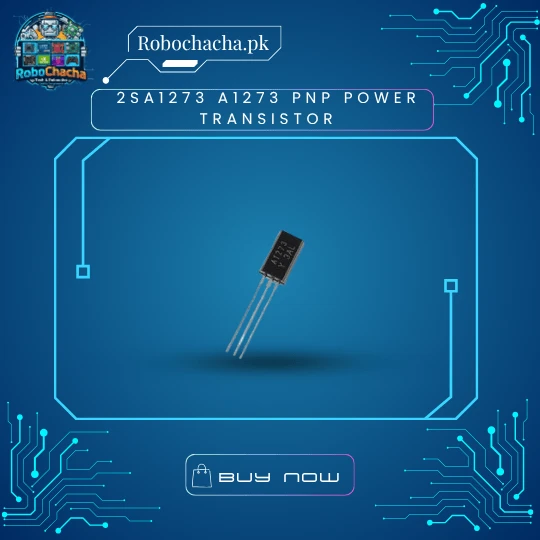

The 2SA1273 is a high-current PNP epitaxial silicon transistor. While a standard BC557 might only handle 100mA, the A1273 can manage a continuous collector current of 2.0 Amperes. The TO-92L package is slightly taller than a standard TO-92, providing better heat dissipation for those high-load tasks. It is specifically designed for power amplification and high-speed switching in portable electronics.
Key Features
High Collector Current: Capable of handling I_C = -2.0A (continuous).
Low Saturation Voltage: Ensures minimal power loss and heat generation during switching.
TO-92L Package: The “Long” lead version allows for better airflow and easier mounting in dense PCBs.
Complementary Pair: Perfectly matched with the 2SC3205 (NPN) for push-pull audio stages.
Versatile Logic: Easily driven by microcontrollers (with a base resistor) to switch high-power loads like motors or solenoids.
Technical Specifications ⚙️
| Feature | Specification |
| Transistor Type | PNP Silicon |
| Package | TO-92L (Through-Hole) |
| Collector-Emitter Voltage (V_{CEO}) | -30V |
| Collector-Base Voltage (V_{CBO}) | -30V |
| Collector Current (I_C) | -2.0A (Continuous) |
| Collector Dissipation (P_C) | 1.0W |
| DC Current Gain (h_{FE}) | 100 to 320 |
| Transition Frequency (f_T) | 120MHz |
Common Applications
Audio Output Stages: Used in the final amplification phase of small radios and speakers.
Relay Drivers: Switching high-current relays from low-power sensor signals.
Emergency Lights: Controlling the power flow to LED arrays in rechargeable lamps.
