S9012 PNP Transistor – 25V 500mA BJT Silicon Transistor in Pakistan
₨ 20
- Cash on Delivery all over Pakistan
- Fast delivery by TCS, or pick up from Hall Road, Lahore
- Tested & genuine, checked before dispatch
- Easy returns - see our policy
Overview

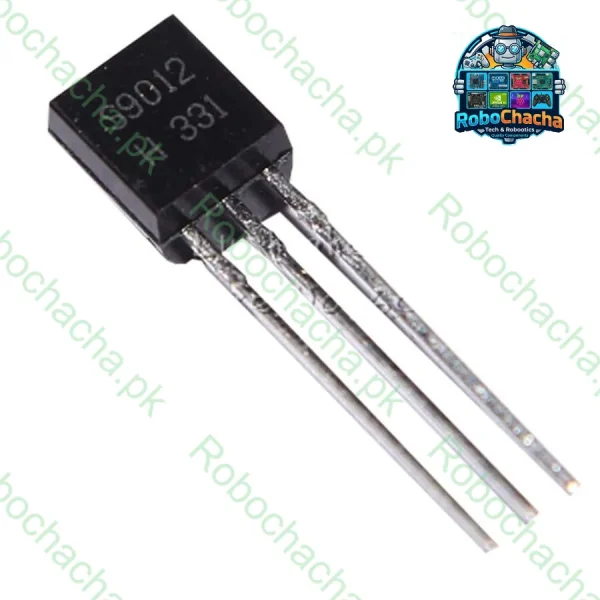

The S9012 is a silicon PNP bipolar junction transistor (BJT) housed in the standard TO-92 package. It is specifically designed for low-voltage, high-current applications. If you are building a circuit that needs to switch a load on the “high side” (positive side), the S9012 is a fantastic choice. It is commonly used as a complementary pair with the S9013 NPN transistor in Class B audio amplifiers and push-pull motor drivers.
Key Features
Higher Current Rating: Unlike the 100mA-rated BC557, the S9012 handles up to 500mA continuous current.
Compact TO-92 Form Factor: Fits perfectly into breadboards and perf-boards.
Excellent Linearity: High gain (hFE) makes it suitable for audio amplification and signal processing.
Low Saturation Voltage: Ensures minimal power loss when used as a switch.
Technical Specifications
| Feature | Specification |
| Transistor Type | PNP (General Purpose) |
| Max Collector Current (IC) | 500mA (0.5A) |
| Max Collector-Emitter Voltage (VCEO) | 25V |
| Max Collector-Base Voltage (VCBO) | 40V |
| DC Current Gain (hFE) | 64 to 300 |
| Total Dissipation (Pc) | 625mW |
| Package Type | TO-92 (Plastic) |
| Operating Temperature | -55°C to +150°C |
