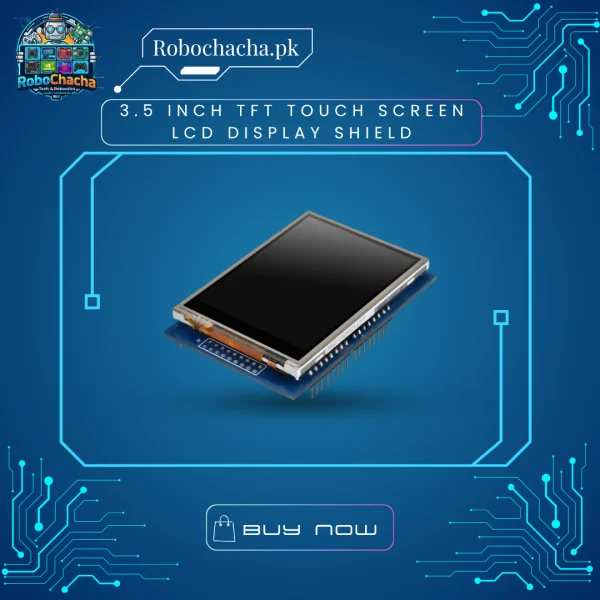

Say goodbye to tangled data wires and complicated pin routing. The 3.5″ TFT Touch Screen LCD Shield provides a clean, elegant, and plug-and-play solution to add a full-color human-machine interface (HMI) to your Arduino projects. Boasting a spacious 320×480 pixel canvas with rich 16-bit color depth, it is significantly sharper and easier to read than smaller displays.
It comes with an integrated resistive touch overlay and a MicroSD card slot. Since it utilizes standard Arduino shield spacing, it plugs directly on top of your development board, routing all data channels automatically.
Key Features
Direct Plug-and-Play Shield: Zero external wires or logic conversion circuits needed—snaps directly over an Arduino Uno, Mega 2560, or Due.
Spacious 320×480 Canvas: High text readability and plenty of workspace to design multi-window user menus, toggle buttons, and live graphs.
Integrated SD Card Slot: Easily host external font libraries, custom icons, or full-screen 16-bit .bmp color graphics directly from local flash storage.
On-Board Logic Shifters: Fully integrated 5V-to-3.3V voltage level converter chips protect the display panel from direct Arduino logic levels.
Technical Specifications
Feature
Specification
Screen Size
3.5 Inch (Diagonal)
Resolution
320 x 480 Pixels
Core Display Driver
ILI9486 / ILI9488 (Batch dependent)
Touch Controller
Integrated Resistive Touch Matrix
Color Support
16-bit RGB (65,536 Vivid Colors)
Data Interface
8-bit Parallel Data Bus (Pins D2-D9)
Operating Voltage
5.0V DC (Powered directly from the Arduino board)
Module Dimensions
Approx. 85mm x 55mm
Weight
2000 g
Dimensions
15 × 10 × 5 cm
