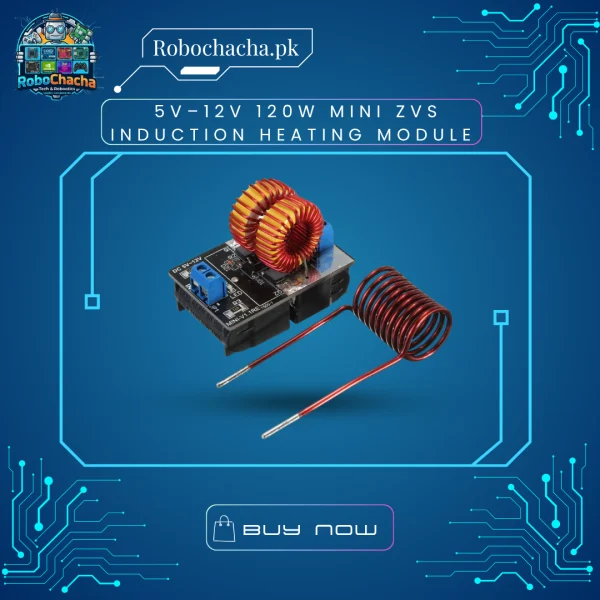

5V–12V 120W Mini ZVS Induction Heating Module – DIY Metal Heater Board for Electronics Projects

Overview

The Mini ZVS Induction Heating Module is a powerful, low-voltage experimental board designed to demonstrate the principles of electromagnetic induction. By creating a high-frequency alternating magnetic field, this module can heat ferromagnetic metals—like iron, steel, and nickel—to glowing temperatures in seconds. It is a must-have for engineering students, science enthusiasts, and anyone looking to create a unique “making” project.

Key Features

• Powerful Output: Delivers up to 120W of heating power when connected to a 12V supply.

• ZVS Technology: Utilizes Zero Voltage Switching, which significantly improves efficiency and reduces stress on the internal components.

• Compact Design: Small enough for tabletop setups while still capable of impressive thermal results.

• Versatile Power: Works on a range from 5V to 12V DC, allowing you to experiment with different heating intensities.

• Safety & Stability: Built with high-quality components and an integrated heating coil, designed for quick and safe setup for experimental use.

Technical Specifications
