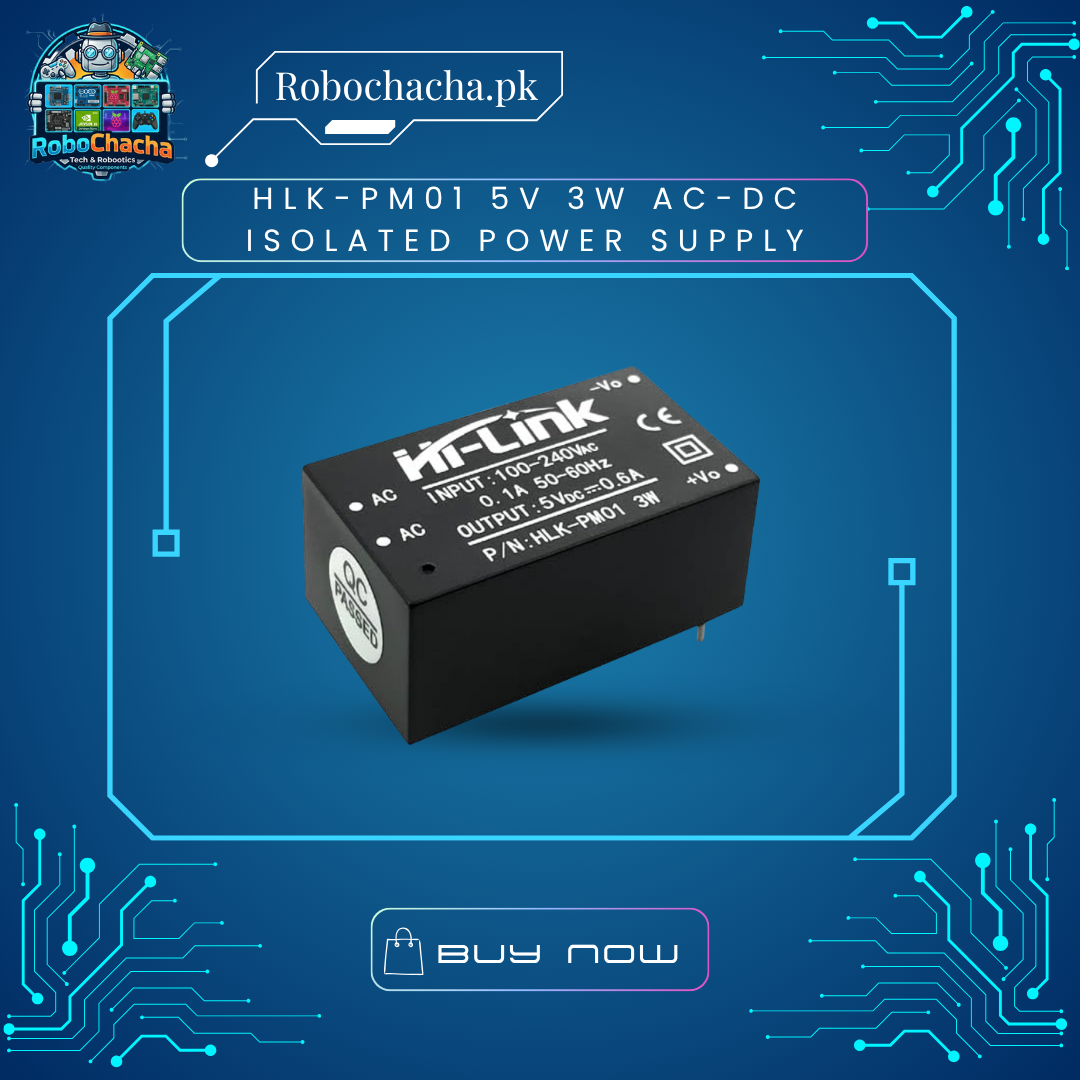

The Hi-Link HLK-PM01 is an isolated switching power supply module that provides a stable, clean 5V output from your household AC mains. Measuring just a few centimeters, it is the “gold standard” for embedding power in small, intelligent home devices, sensor nodes, and microcontroller-based projects. Because it is isolated, it provides a high level of safety, protecting your sensitive low-voltage electronics (like ESP32/Arduino) from the dangerous high-voltage AC side.
Key Features
Ultra-Compact: Minimalist footprint, perfect for space-constrained PCB designs or tiny junction boxes.
Wide Input: Accepts a global input voltage range from 90V to 264V AC.
Safety First: Includes built-in overload, short-circuit, and over-temperature protection.
Low Noise/Ripple: Delivers a steady 5V signal, ensuring your sensors and microcontrollers run without interference.
No-Load Power: Extremely low power consumption (no-load loss < 0.1W) when the device is in standby.
Technical Specifications
Feature
Specification
Input Voltage
100V – 240V AC (90V–264V range)
Output Voltage
5V DC ± 0.1V
Output Power
3 Watts
Continuous Current
600 mA (Max)
Efficiency
~70% at 220V AC
Isolation Voltage
2500V AC
Dimensions
34mm x 20mm x 15mm
Weight
2000 g
Dimensions
15 × 10 × 5 cm
