Overview

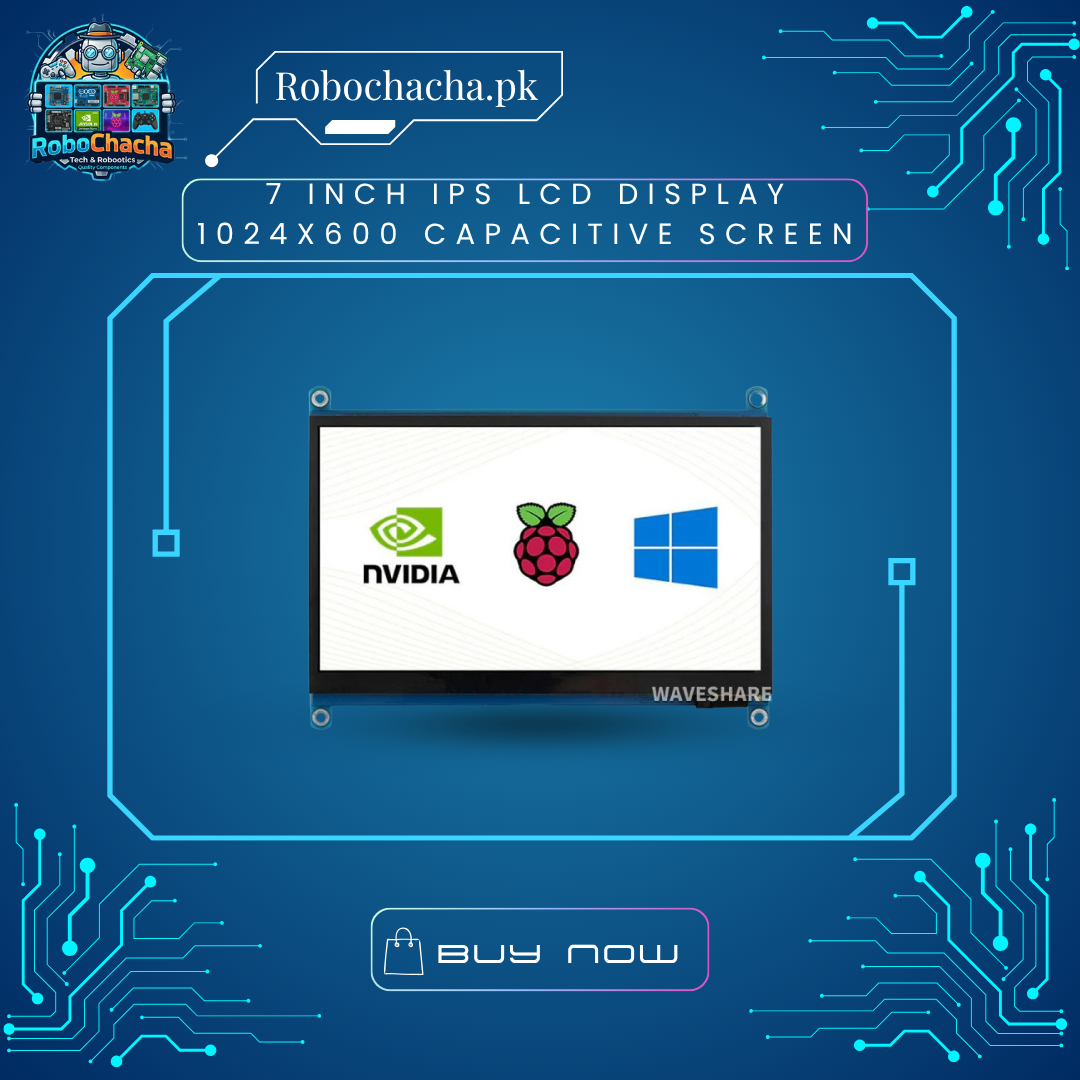

Bring stunning visuals and fluid interactivity to your computing setups with the 7-inch 1024×600 Capacitive Touch Monitor. This high-resolution panel connects seamlessly via HDMI for video and USB for touch data, meaning it requires zero specialized drivers on most operating systems. Featuring a brilliant IPS/TFT panel with wide viewing angles, it is the premier choice for engineering students, developers, and makers building custom smart-home hubs, 3D printer terminals (Klipper/OctoPrint), portable gaming rigs, or automotive dashboard consoles.
Key Features
Fluid Capacitive Touch: Supports up to 5-point multi-touch control with a hardened glass surface that resists scratches.
Sharp 1024×600 Resolution: Clear, high-density layout ensures small text, complex graphs, and detailed software interfaces are perfectly readable.
Driverless Setup: Standard HID (Human Interface Device) USB protocol means it is plug-and-play for Windows, Linux, and Raspberry Pi OS.
Dual Interface Connection: Standard HDMI input for crisp video processing alongside a Micro-USB/Type-C port for both power and touch coordinates.
Backlight Control: Includes an onboard toggle switch or button to turn off the backlight, conserving energy in battery-powered setups.
Technical Specifications
| Feature | Specification |
| Screen Size | 7 Inches (Diagonal) |
| Physical Resolution | 1024 x 600 Pixels (Supports input up to 1920×1080) |
| Display Panel Type | High-Quality TFT / IPS Variant |
| Touch Type | Capacitive Touch (USB Powered) |
| Video Interface | HDMI |
| Power Input | 5V DC @ 500mA – 1A (via USB) |
| Supported Platforms | Raspberry Pi 4/5, PC, Orange Pi, Jetson Nano, BeagleBone |
| Dimensions | Approx. 165mm x 124mm x 14mm |
Capacitive vs. Resistive: Why it matters?
Responsiveness: Capacitive screens react to the static electricity of your skin instantly. Resistive screens require actual physical pressure (forcing you to press hard or use a plastic pen).
Clarity: Without the thick plastic overlay of a resistive film, capacitive glass allows more light through, making colors vibrant and blacks much deeper.
