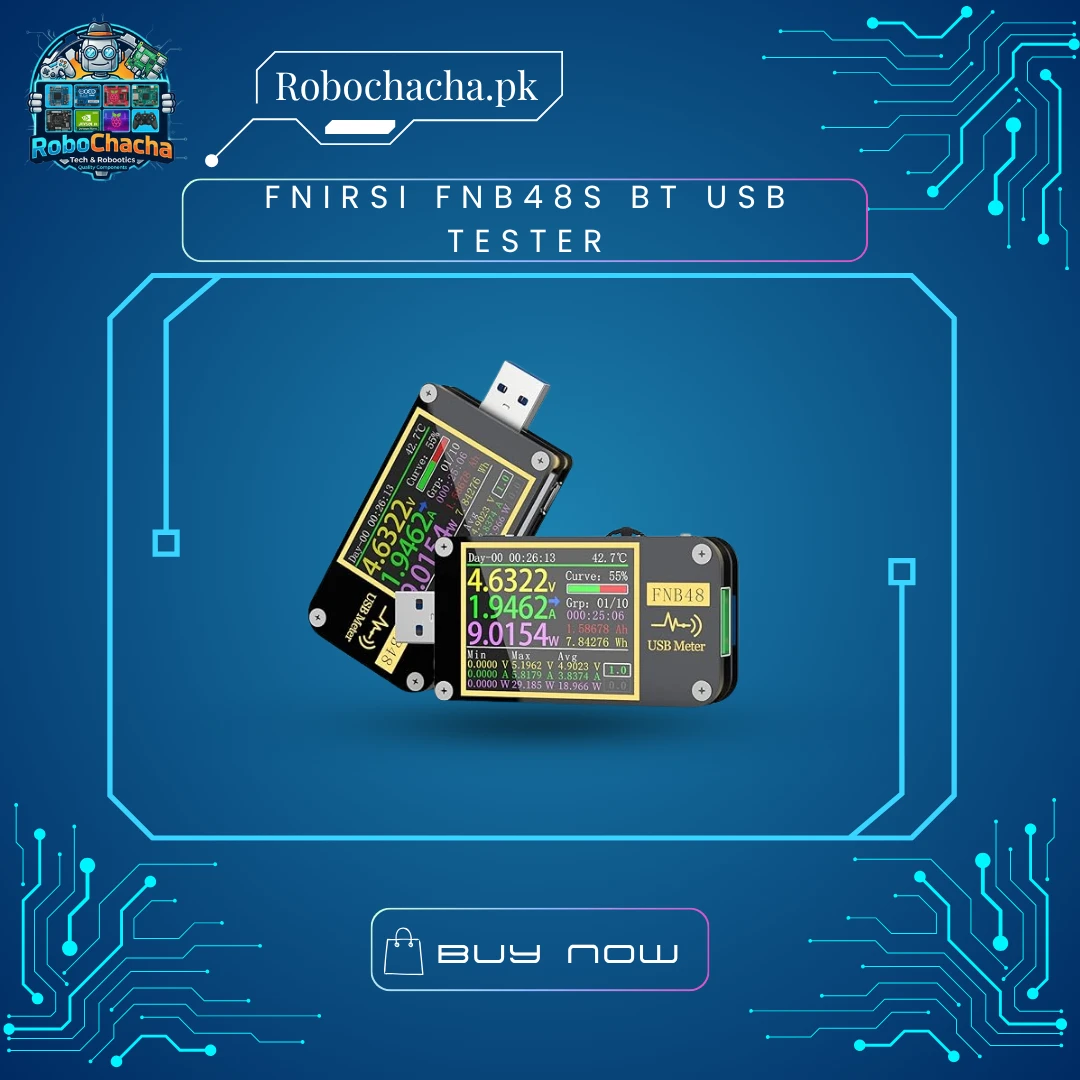

The FNIRSI FNB48S BT is a professional-grade USB multi-tester designed for deep analysis of charging systems. It features a stunning 1.77-inch high-definition TFT LCD and a dedicated 16-bit ADC for extreme precision. Unlike basic testers, the FNB48S can “trigger” fast-charging protocols, allowing you to manually test the maximum output of a charger. With integrated Bluetooth, you can monitor real-time charging curves and log data directly to the official Android app.
Key Features ✨
Bluetooth Connectivity: Wirelessly monitor voltage, current, and power curves on your smartphone (Android).
Protocol Triggering: Manually test PD 2.0/3.0, PPS, QC 2.0/3.0/4+, Samsung AFC, Huawei FCP/SCP, and VOOC/DASH.
Cable Detection: Built-in E-Marker and DASH cable chip reader to identify the quality and capacity of your charging cables.
Gravity Sensing: The screen automatically flips based on orientation—no more reading data upside down!
High Precision: 6-digit display mode provides a resolution of 0.00001 for voltage and current.
Technical Specifications ⚙️
Feature
Specification
Monitor Voltage
4.00V to 24.00V (Accuracy: ±0.2%+2)
Monitor Current
0.00A to 6.50A (Accuracy: ±0.5%+2)
Power Range
0 to 156 Watts
Interface Ports
USB-A (In/Out), USB-C (In/Out), Micro-USB
PC Connection
Micro-USB (Windows Software Support)
Data Recording
10 Sets of Offline Data Storage
Sampling Rate
Up to 1000Hz (for ripple/waveform analysis)
Weight
2000 g
Dimensions
15 × 10 × 5 cm
