Overview

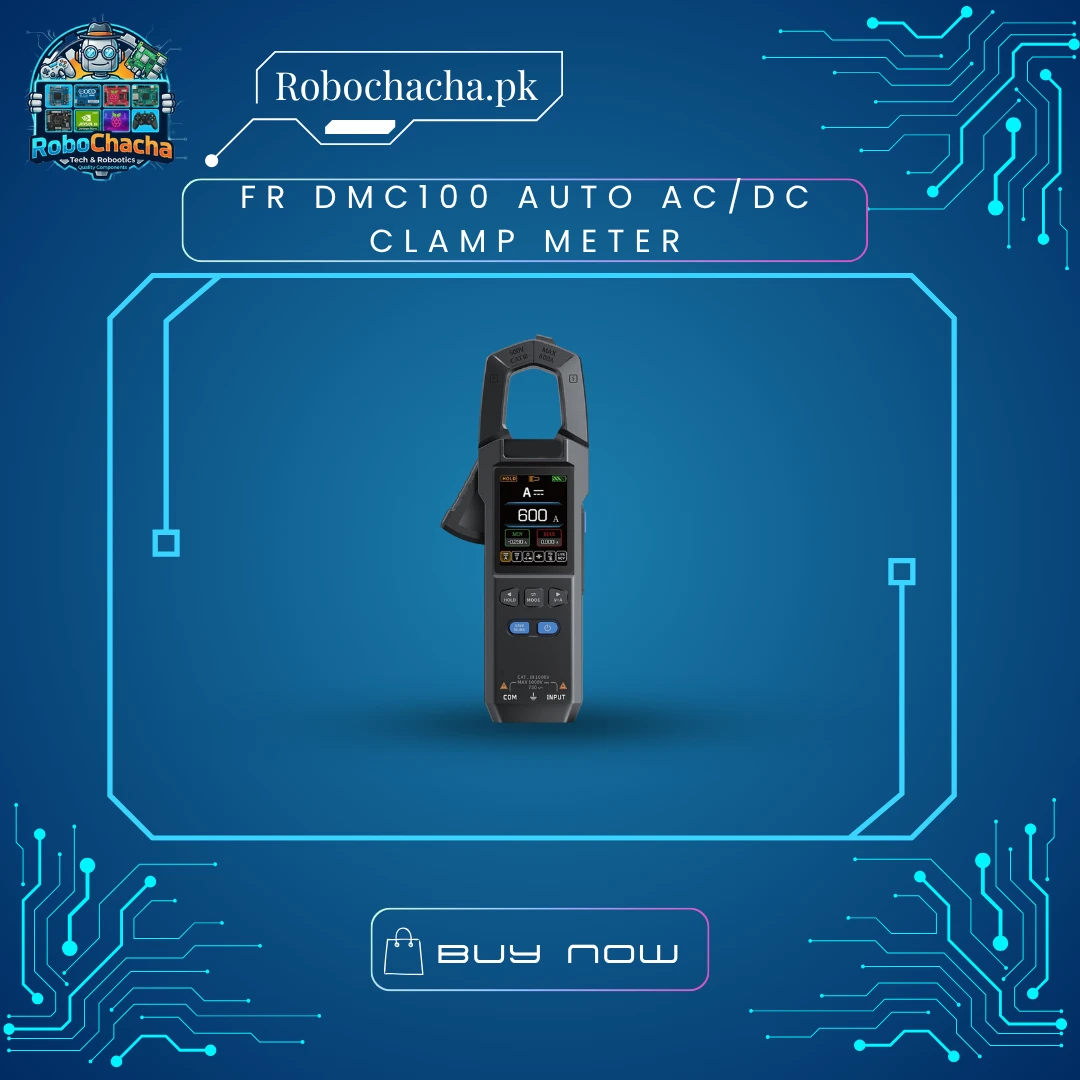

The FR DMC100 is a professional-grade, auto-ranging digital clamp meter designed for safety and precision. Its standout feature is the ability to measure DC Current through the clamp—allowing you to troubleshoot solar arrays, battery banks, and DC motors without ever cutting a wire. With True RMS technology, it provides accurate readings even on non-linear signals, making it ideal for modern homes with complex electronics and inverters.
Key Features
AC/DC Current Measurement: Measures up to 1000A (model dependent) on both AC and DC circuits using the induction clamp.
Non-Contact Voltage (NCV): Safely detect live wires behind walls or inside panels without direct contact.
True RMS: Ensures accurate measurements on “dirty” power signals from inverters and UPS systems.
Auto-Ranging Intelligence: No need to guess the range; the meter automatically selects the correct resolution for you.
Large Backlit LCD: Crystal clear visibility in dark electrical cabinets or during evening solar maintenance.
Multimeter Functions: Also measures Voltage (AC/DC), Resistance, Capacitance, Frequency, and Diode testing.
Technical Specifications
| Feature | Specification |
| Max Display | 6000 Counts |
| DC Current | Up to 600A/1000A (Automatic Sensing) |
| AC Current | Up to 600A/1000A (True RMS) |
| AC/DC Voltage | Up to 600V/1000V |
| Jaw Opening | ~30mm – 45mm (Fits heavy-duty cables) |
| Safety Rating | CAT III 600V / CAT II 1000V |
| Additional Features | Data Hold, Flashlight, Low Battery Indicator |
Why the DMC100 is a “Solar Essential”
In Pakistan, solar installers often struggle with standard multimeters that can’t measure high DC amps. The DMC100 allows you to simply “clamp” onto the wire coming from the solar panels to verify the current flow instantly. It’s the difference between guessing if your panels are working and knowing they are.
