Overview

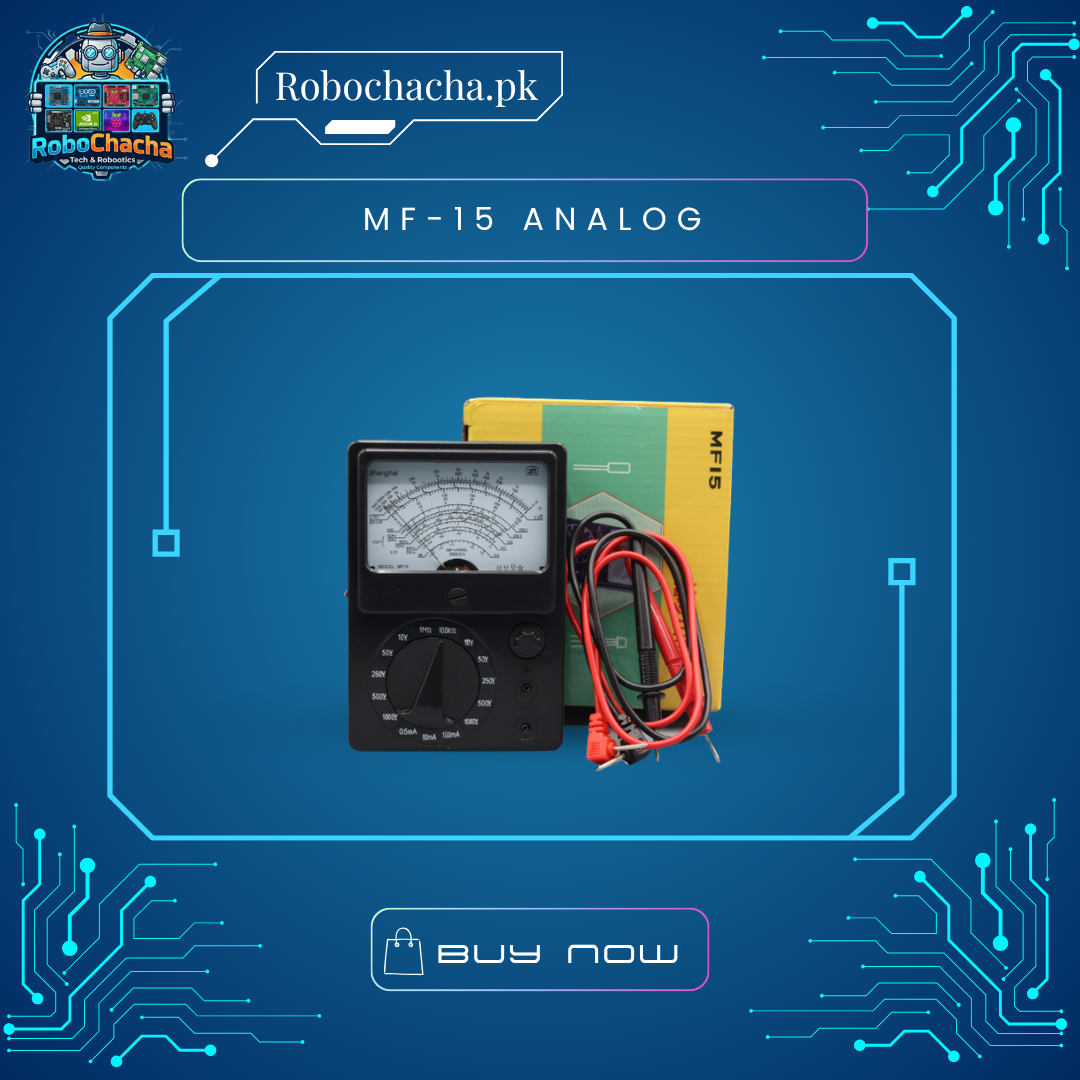

Don’t let the size fool you. The MF-15 Analog Multimeter is a versatile diagnostic tool that fits right in the palm of your hand. Designed for portability without sacrificing accuracy, it features a high-sensitivity moving-coil movement and a clear, easy-to-read scale. It’s the ideal companion for basic home repairs, student science projects, and automotive troubleshooting, where you need a quick “Go/No-Go” status of your power sources.
Key Features
Ultra-Portable Design: Weighing just a few grams and smaller than most smartphones, it’s the ultimate “on-the-go” testing tool.
No Battery Required for Voltage/Current: Like most analog meters, it uses the power from the circuit to measure Voltage and Current (Battery only needed for Resistance/Ohms).
High Sensitivity: Features a 2000 $\Omega/V$ DC sensitivity, providing reliable readings for DIY electronics.
Recessed Terminals: Designed with safety in mind to prevent accidental contact with live components.
Color-Coded Scale: Easy-to-read markings for AC (Red), DC (Black), and Resistance (Green).
Technical Specifications
| Feature | Range |
| DC Voltage | 0 – 10V / 50V / 250V / 1000V |
| AC Voltage | 0 – 10V / 50V / 250V / 1000V |
| DC Current | 0 – 0.5mA / 50mA / 500mA |
| Resistance (Ohms) | x10 / x1k (Up to 100k$\Omega$) |
| Decibels (dB) | -20 to +22dB |
| Accuracy | Class 4.0 / 5.0 |
| Power Supply | 1 x 1.5V AA Battery (For Resistance testing) |
