Overview

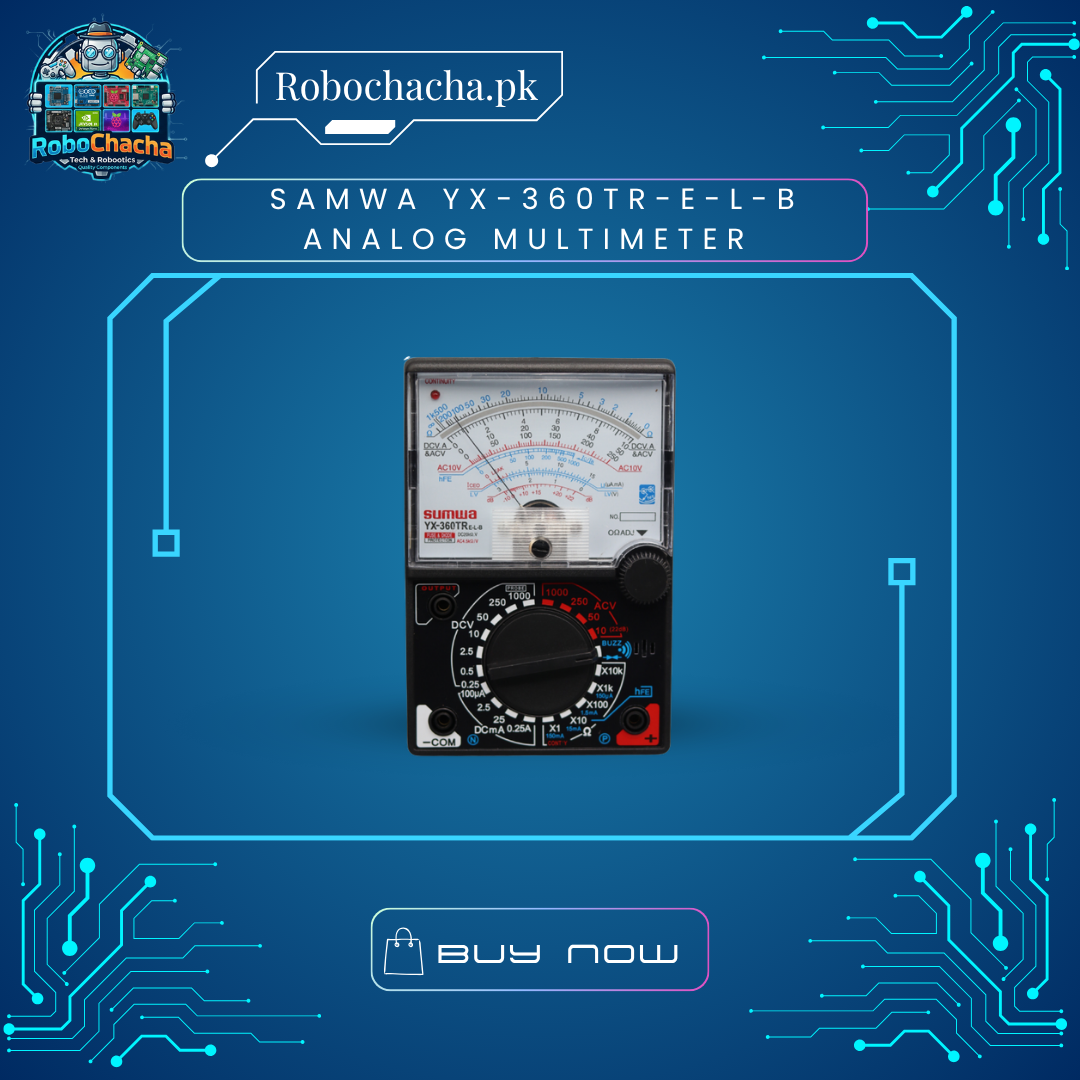

The SAMWA YX-360TR-E-L-B is a high-sensitivity, multi-function analog multimeter. It is a staple in electronics labs and repair shops across Pakistan due to its rugged design and precision. Unlike digital meters, the analog needle allows you to see the “rate of change” in a signal, making it the preferred choice for checking leaky capacitors and vintage audio equipment. This version includes a Continuity Buzzer and a Light (LED) to make “blind” testing (where you can’t look at the screen) much easier.
Key Features
Triple Functionality: Measures AC/DC Voltage, DC Current, and Resistance.
Continuity Buzzer & LED: Audible and visual alerts for low-resistance paths—perfect for checking cables and traces.
Transistor hFE Test: Built-in socket to check the gain and health of NPN and PNP transistors.
Null DCV (Zero Center): Allows for measurement of positive and negative voltage fluctuations.
Diode & Fuse Protection: Internal protection circuits to prevent damage from accidental overloading.
Durable Case: Features a flip-stand for easy viewing on your workbench.
Technical Specifications
| Feature | Measurement Range |
| DC Voltage | 0.1V / 0.5V / 2.5V / 10V / 50V / 250V / 1000V |
| AC Voltage | 10V / 50V / 250V / 1000V |
| DC Current | 50µA / 2.5mA / 25mA / 0.25A |
| Resistance | x1 / x10 / x100 / x1k / x10k (up to 20MΩ) |
| Transistor (hFE) | 0 ~ 1000 |
| Continuity | Buzzer sounds below ~100Ω |
| Power Source | 1 x 9V Battery & 2 x 1.5V AA (Not always included) |
Analog vs. Digital: Why buy this?
Capacitor Testing: You can watch the needle “swing” and return to zero to confirm a capacitor is charging properly.
No “Ghost” Voltages: High-input impedance in digital meters can sometimes show false readings; analog meters are more grounded in reality.
Battery Life: The basic voltage functions don’t even require a battery to work! (Batteries are only needed for Resistance and Buzzer).
