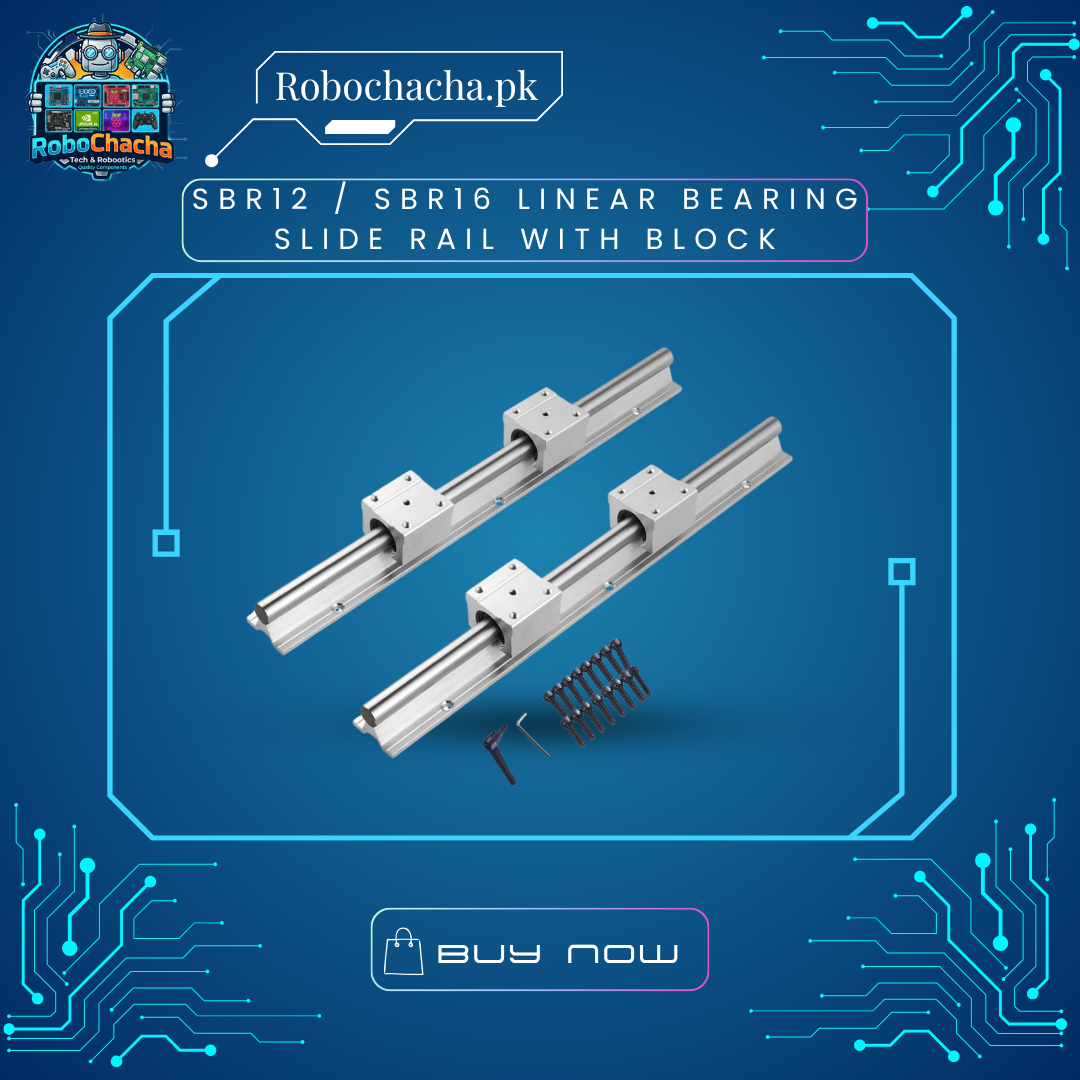

SBR12 / SBR16 Linear Bearing Slide Rail with Block – High-Load Supported Guide Rail for CNC Routers

Overview

Building a rigid CNC machine requires eliminating mechanical deflection. Standard unsupported smooth rods tend to bend in the middle under the weight of heavy spindles. Our SBR Series Supported Linear Slide Rails feature a hardened steel shaft continuously bolted to a solid, structural aluminum base configuration. When paired with the matching open-type linear bearing blocks, this system provides uninterrupted, low-friction linear travel along your X, Y, or Z axes under immense downward cutting pressure.

Key Features

• Continuous Aluminum Support: Prevents the steel shaft from bowing or flexing over long distances, making it ideal for large-scale CNC builds.

• Hardened Chrome Steel Shaft: Case-hardened to HRC62 grade to resist wear, scratches, and indentation from thousands of hours of bearing travel.

• Pre-Drilled Mounting Holes: The aluminum base features factory-aligned, countersunk mounting holes for easy installation onto aluminum extrusions or steel frames.

• Smooth Recirculating Ball Blocks: The matching aluminum slider block utilizes internal loops of steel ball bearings for fluid movement with zero stick-slip.

Technical Specifications

SBR12 vs. SBR16: Which one do you need?

• SBR12 (12mm): Perfect for compact desktop CNC machines, heavy-duty 3D printers, laser engravers, and lightweight Z-axis assemblies.

• SBR16 (16mm): Recommended for main X and Y axes on larger routing tables carrying heavy $1.5\text{kW}$ or $2.2\text{kW}$ milling spindles.
