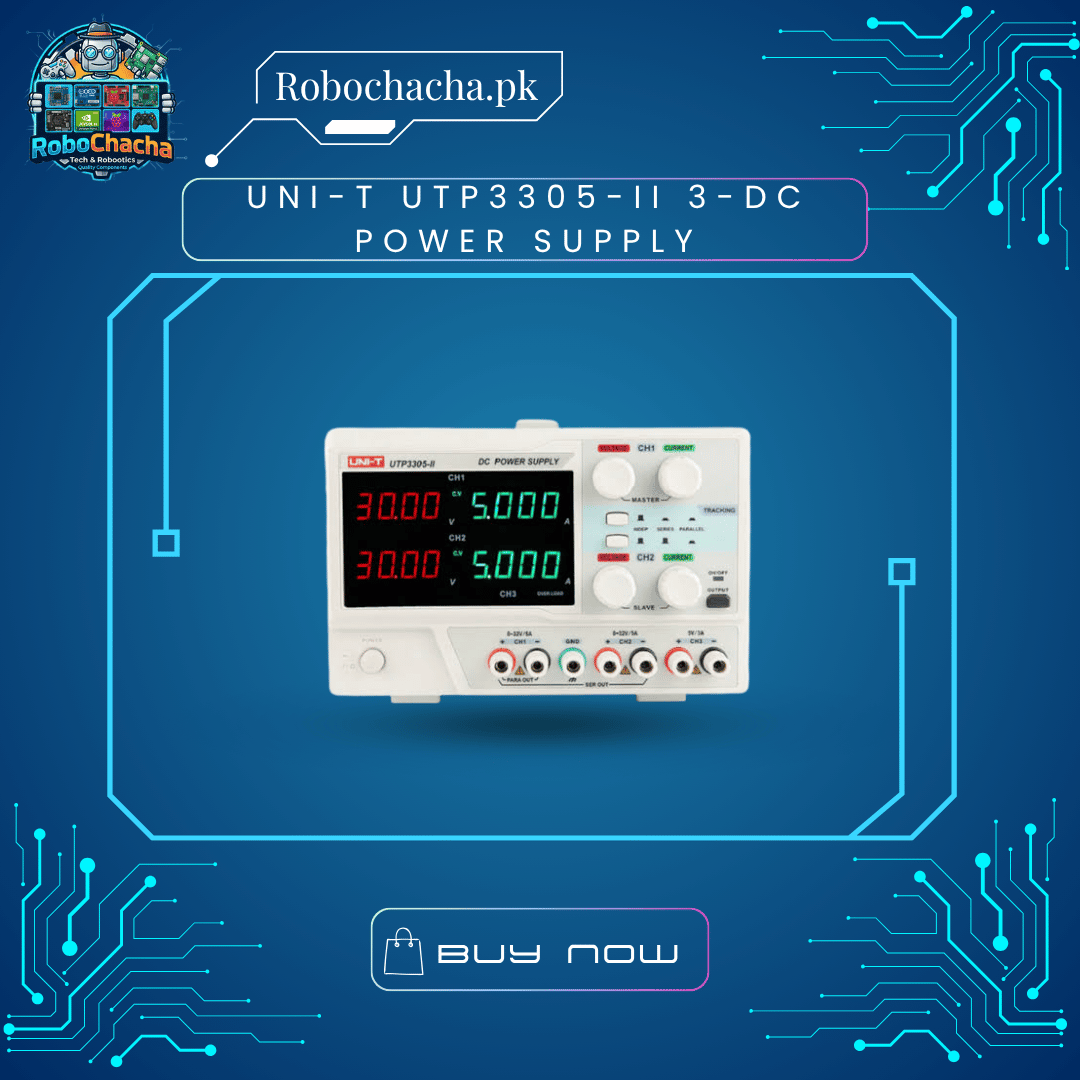

UNI-T UTP3305-II 3-Channel Linear DC Power Supply (32V/5A) – High Precision Lab Bench PSU in Pakistan

Overview

The UNI-T UTP3305-II is a precision-grade linear power supply designed for demanding electronics work. Unlike switching power supplies, this linear topology provides ultra-clean power with virtually no high-frequency noise or ripples, making it ideal for sensitive analog circuits, audio equipment, and high-end microcontroller projects. With two independent 0–32V/5A channels and a dedicated 5V/3A logic rail, it covers almost every bench-top powering need.

Key Features

• Triple-Channel Versatility: Two fully independent adjustable channels + one fixed 5V/3A channel for powering logic-level sensors and microcontrollers.

• Series/Parallel Tracking: Automatically combine CH1 and CH2 for up to 64V (Series) or 10A (Parallel) without external wiring.

• 4-Digit LED Precision: High-accuracy readouts with 10mV and 1mA resolution, letting you see exactly how much current your device is drawing.

• Ultra-Low Ripple: Linear design ensures output noise $\le 1\text{mVrms}$, protecting your sensitive components from interference.

• Professional Safety: Built-in Over-Voltage (OVP), Over-Current (OCP), and Over-Temperature (OTP) protections.

Technical Specifications
