Overview

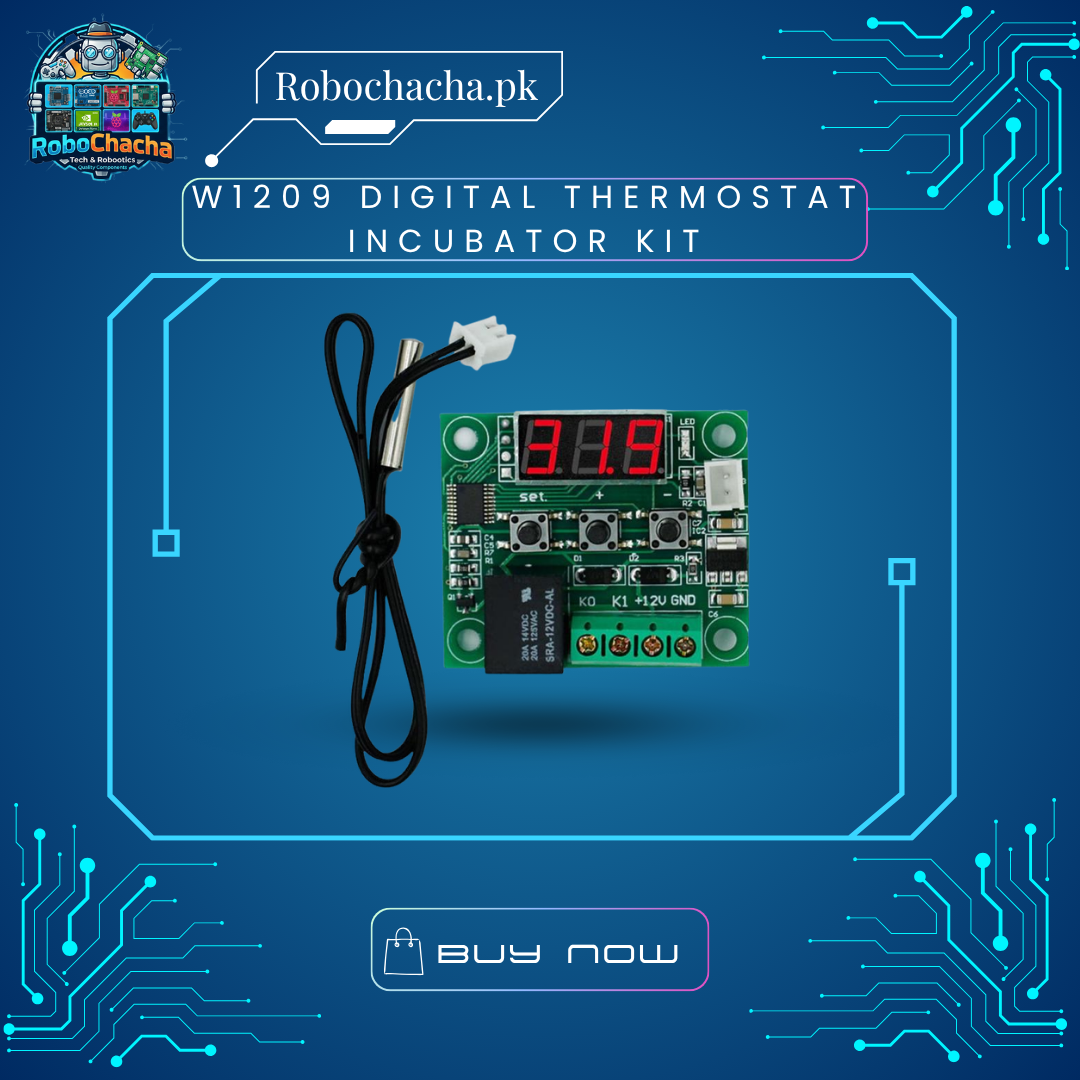

Achieve professional hatching success rates at home with the W1209 Digital Thermostat Incubator & Ventilation Kit. Maintaining an absolute, uniform climate is the single most critical factor when building an egg incubator or bird brooder. This all-in-one hardware package features the high-precision W1209 digital controller, an ultra-sensitive waterproof temperature probe, and an optimized 3-inch DC circulation fan. While the W1209 microchip monitors environmental fluctuations and precisely switches your heating element on and off, the continuous 3-inch fan forces air to loop smoothly throughout your enclosure, ensuring every egg receives identical thermal conditions.
Key Features
Micro-Controlled Temperature Thresholds: Program your target parameters down to $0.1^\circ\text{C}$. The clear 3-digit LED screen gives you an instantaneous readout of the internal chamber conditions.
3-Inch Forced-Air Ventilation: Includes a balanced, low-noise 3-inch fan designed to run continuously, blending air layers inside your project box to eliminate stratification and hot pockets.
Heavy-Duty Onboard Relay Switch: The integrated SRD-style relay safely switches load circuits up to 10A, allowing you to directly control 220V AC incandescent heating bulbs, PTC ceramic elements, or carbon heating cords.
Waterproof NTC Sensor Probe: Comes equipped with a 50cm sealed thermistor cable that can withstand high-humidity environments without degrading or throwing false calibration drift.
Advanced Hidden Menu System: Built-in programmable logic parameters allow you to fine-tune temperature hysteresis (setback lag), upper/lower limit caps, delay start timings, and temperature calibration offsets.
Technical Specifications
| Feature | Specification |
| Thermostat Model | W1209 Digital Controller |
| Control Module Power Input | DC 12V |
| Temperature Control Range | -50 C to +110 C |
| Measurement Resolution | 0.1 C (from -9.9 to 99.9 C ) 1.0 C for other ranges |
| Sensor Element Type | NTC (10 K 0.5 %) Waterproof Thermistor Probe |
| Relay Switching Capacity | Max 10A (Handles 12V DC or 220V AC lines) |
| Ventilation Fan Dimensions | 3 Inches (80 mm \times 80 mm \times 25 mm) |
| Fan Operating Voltage | 12V DC |
| Refresh Update Rate | 0.5 Seconds |
W1209 Hidden Programming Menu Cheat-Sheet
To enter configuration mode, hold down the SET button for 3 seconds. Use + and - to navigate parameters, and tap SET to modify:
P0 (Cooling / Heating Mode): Set to H (Heating) for incubator setups.
P1 (Hysteresis / Return Difference): Controls how much the temperature must drop before restarting the heater (Recommended: $0.3^\circ\text{C}$).
P2 & P3 (Temperature Limits): Upper and lower temperature caps.
P4 (Temperature Correction): Calibrates the probe against a medical-grade reference thermometer if a variance is discovered.
P5 (Delay Start Time): 0-10 minutes.
P6 (High-Temperature Alarm): Safety alert ceiling toggle.
