Overview

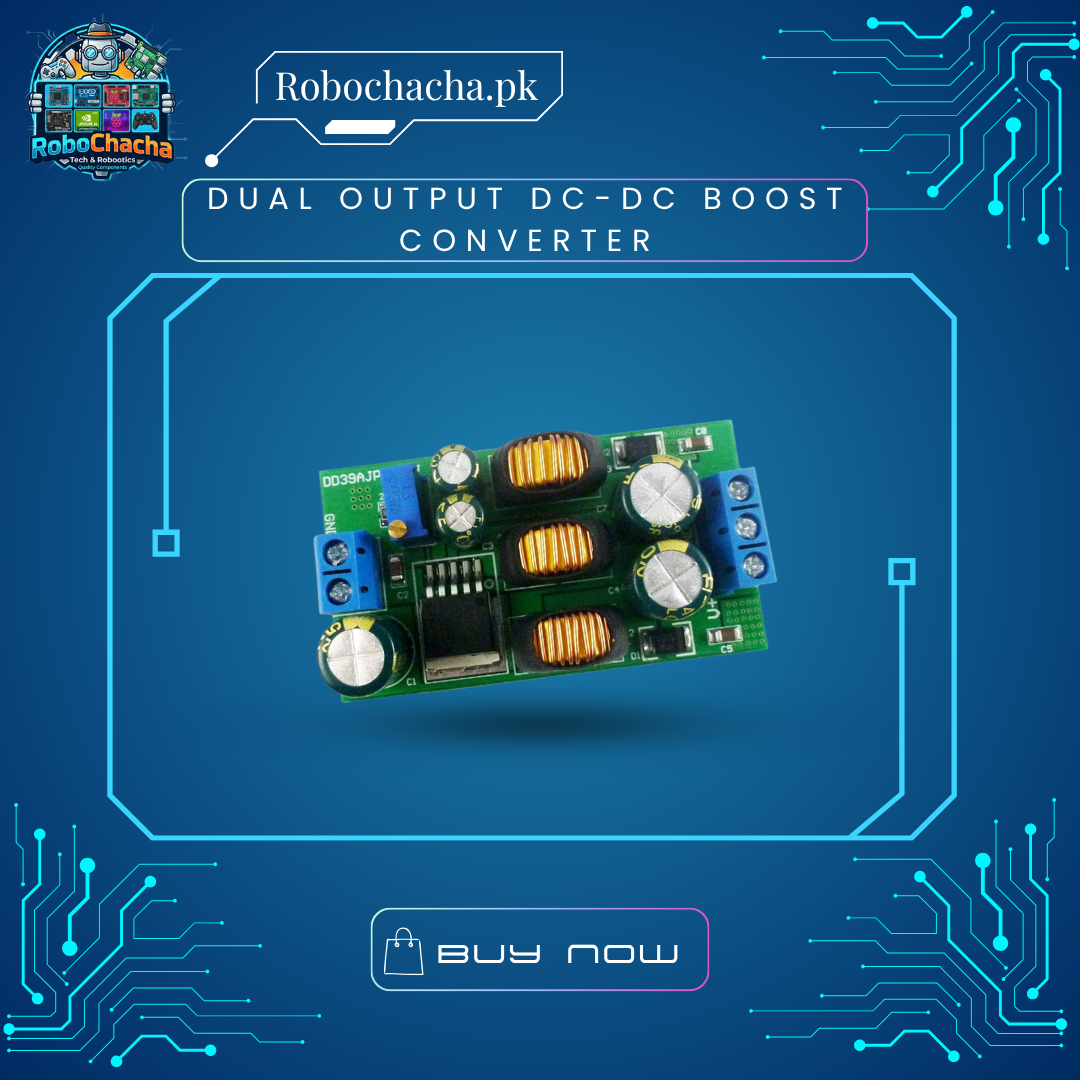

The Dual Output DC-DC Boost Module is an essential tool for analog circuit design. While standard power supplies only provide a positive rail relative to ground, this high-efficiency converter generates both a Positive (+V) and a Negative (-V) output from a single DC source (like a 3.7V Li-ion battery or a 5V USB port). This is the standard way to provide “Symmetric Power” to Operational Amplifiers (Op-Amps) and high-fidelity audio equipment without needing complex dual-battery setups.
Key Features
Dual-Rail Output: Provides both positive and negative voltages simultaneously.
Wide Output Range: Supports various configurations including pm 5V, pm 12V, pm 15V, and up to pm 24V.
High Efficiency: Advanced switching technology ensures minimal heat generation and maximum battery life.
Compact Footprint: Small enough to be integrated into handheld test equipment or portable audio gear.
Low Ripple: Designed to provide clean power for sensitive analog measurements.
Technical Specifications
| Feature | Specification |
| Input Voltage | 3V to 15V DC (Depending on model) |
| Output Voltage Options | $\pm 5V, 6V, 9V, 10V, 12V, 15V, 24V$ |
| Maximum Output Power | Approx. 1W to 5W (Varies by voltage) |
| Conversion Efficiency | 70% – 85% |
| Quiescent Current | ~3-5mA |
| Operating Temperature | -40°C to +85°C |
Common Applications
Op-Amp Circuits: Powering TL072, NE5532, or LM358 in dual-supply mode.
Data Converters: Providing the negative rail for precision ADCs and DACs.
Audio Gear: Portable headphone amps and mixers.
Instrumentation: Multi-meters and sensor conditioning circuits.
