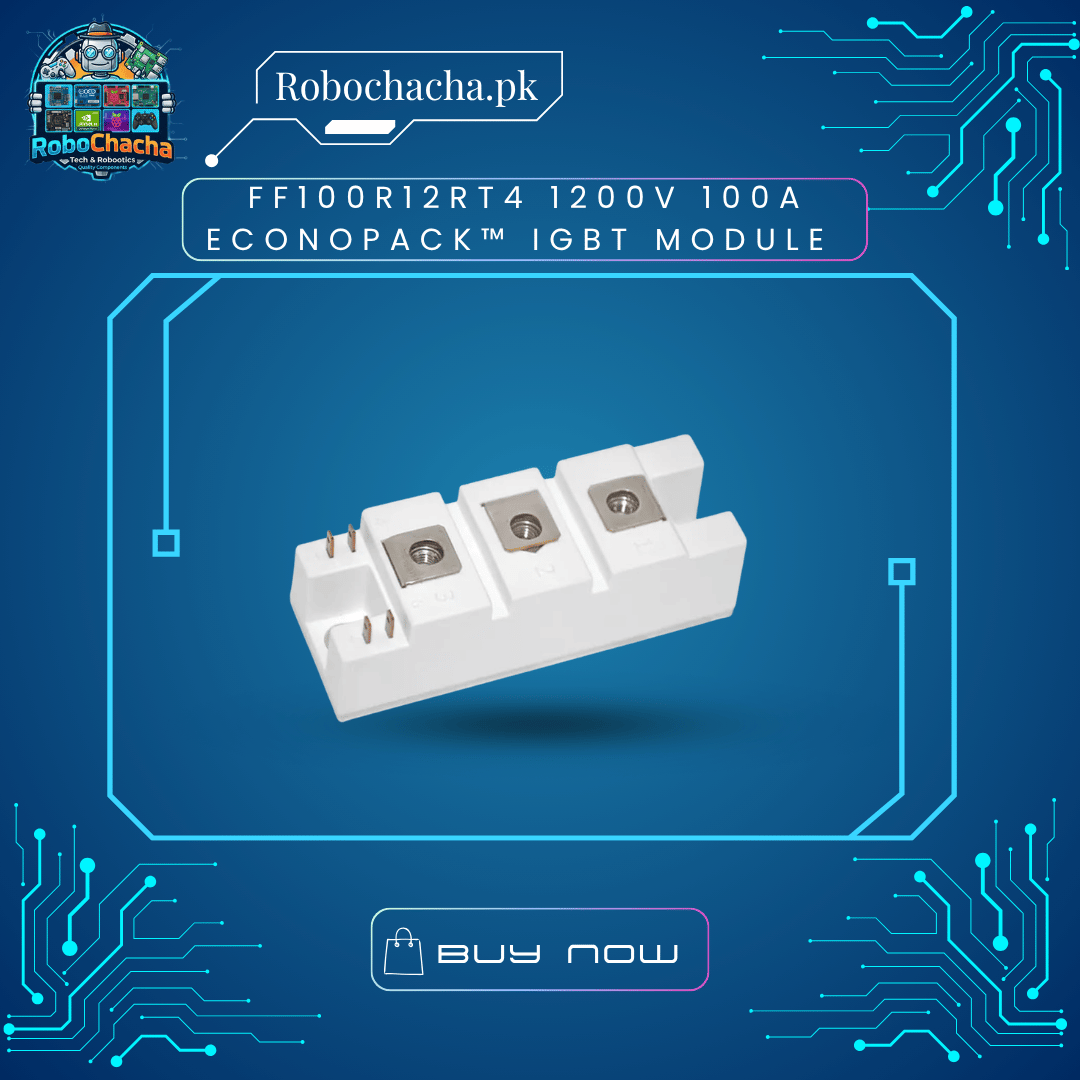

Infineon FF100R12RT4 1200V 100A EconoPACK™ IGBT Module – Industrial Power Switching

Overview

The Infineon FF100R12RT4 is a Six-Pack IGBT module featuring Trench/Fieldstop IGBT4 technology. It is designed to handle high-power density in compact industrial chassis. Whether you are performing maintenance on a heavy-duty industrial VFD (Variable Frequency Drive) or developing a high-efficiency solar power inverter, this module provides the precision switching and thermal stability required for professional-grade power electronics.

Key Features

• Infineon Trench/Fieldstop Technology: Optimized for low switching and conduction losses, significantly improving overall system efficiency.

• Rugged EconoPACK™ Housing: Standard industrial package provides excellent thermal resistance and easy integration into existing power stages.

• High-Power Capacity: 1200V breakdown voltage and 100A current rating meet the needs of mid-to-high power industrial applications.

• Extended Reliability: Designed for long-term operation under high-temperature cycling, critical for industrial maintenance.

• VCE(sat) Stability: Stable saturation voltage ensures balanced current sharing in multi-module parallel configurations.

Technical Specifications

Ideal Applications

• Industrial Drives: Servo drives and high-power AC motor controllers.

• Renewable Energy: Commercial solar inverters and wind power converters.

• UPS Systems: Industrial-grade Uninterruptible Power Supplies.

• HVAC Systems: High-power compressor control for commercial cooling.
