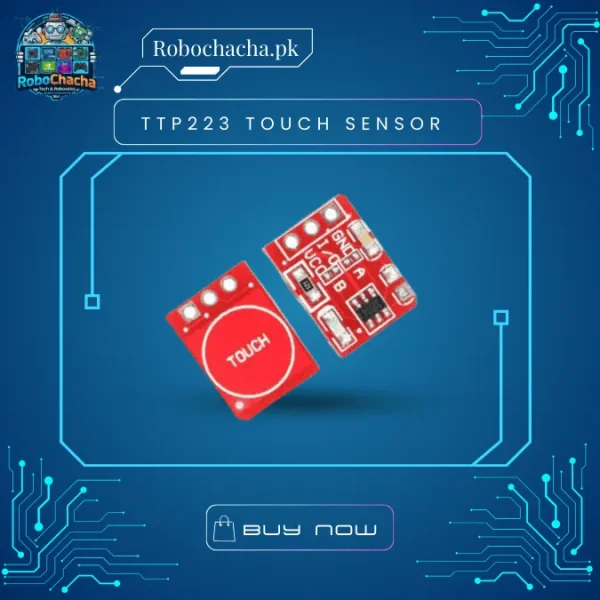

TTP223: The Modern Replacement for Mechanical Buttons
The TTP223 is a single-channel capacitive touch pad detector IC designed to replace traditional mechanical buttons with a sleek, touch-sensitive interface. It is compact, highly reliable, and can even detect touch through non-metallic surfaces like plastic, glass, or acrylic.
Key Features
Auto-Calibration: Automatically calibrates after power-on to ensure accurate touch detection.
Configurable Modes: Solder jumpers on the back allow you to change output between Momentary (default) or Toggle (latched), and Active High or Active Low.
Low Power Consumption: Operates at a very low idle current, making it perfect for battery-powered projects.
Onboard Indicator: A built-in LED provides instant visual feedback when the sensor is triggered.
Technical Specifications
Feature
Details
Operating Voltage
2.0V to 5.5V DC
Output Type
Digital (HIGH/LOW)
Response Time
~60ms (Fast Mode) / ~220ms (Low Power Mode)
Sensing Distance
~5mm (can detect through overlays)
Module Dimensions
15mm x 11mm
Applications in Pakistan
Smart Home Projects: Touch-activated lights or hidden switches behind wooden panels.
Interactive Kiosks: Durable, waterproof touch interfaces for public displays.
Robotics: Tactile input buttons for robot controllers.
Student Projects: Simple touch-to-LED or touch-to-relay interfaces using Arduino or Raspberry Pi.
