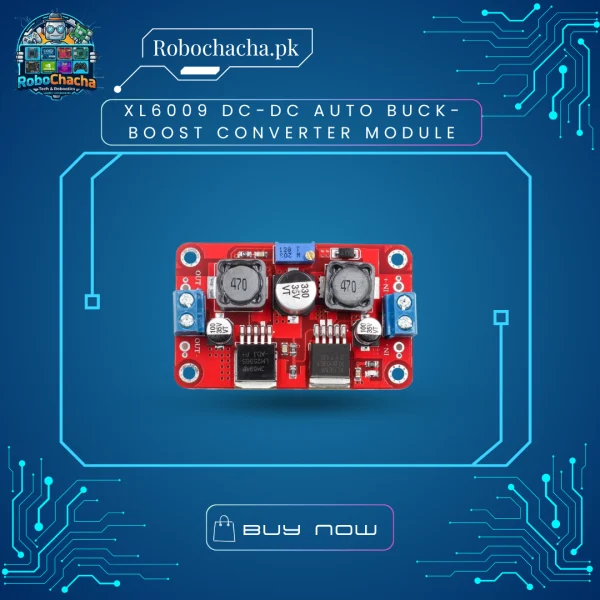

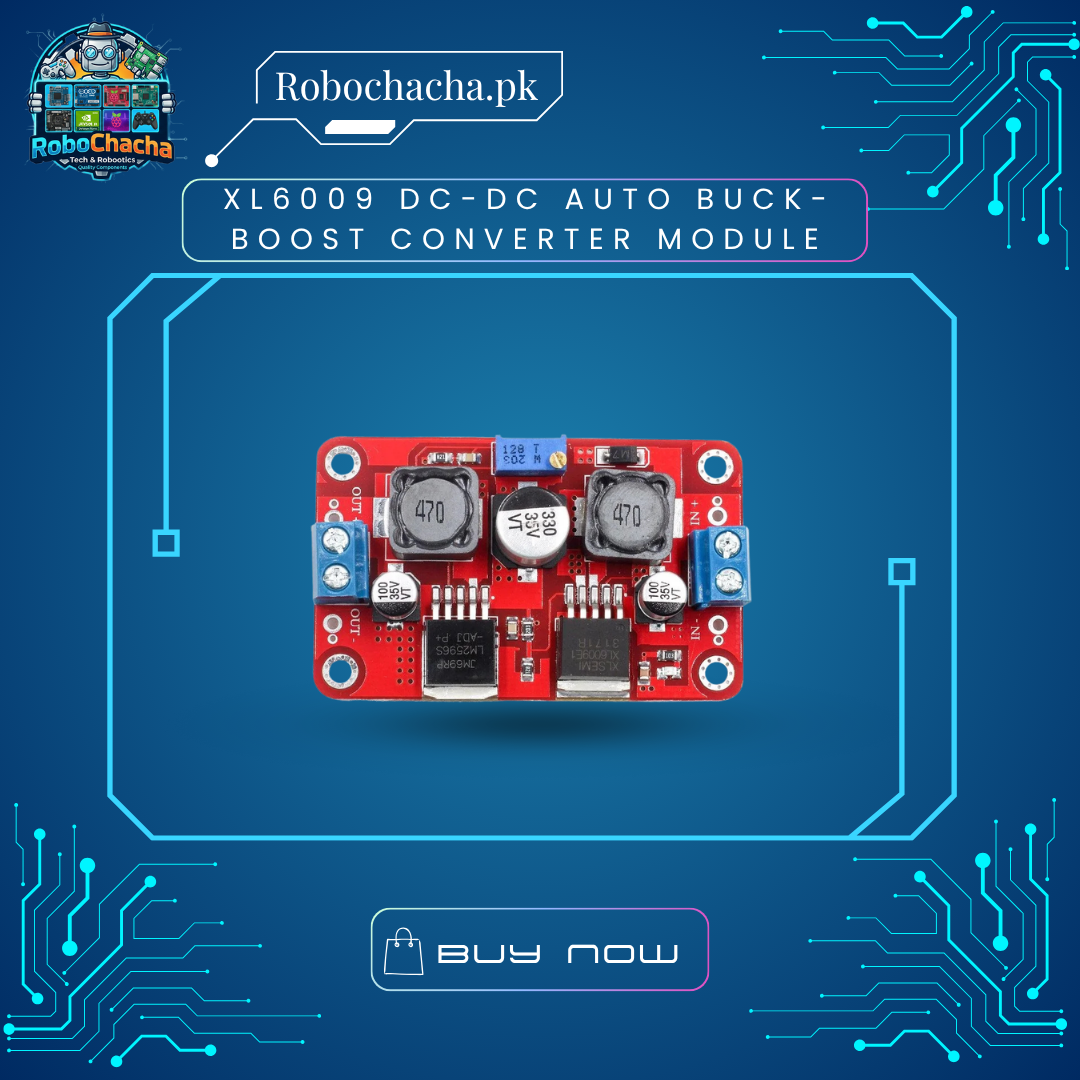

The XL6009 Buck-Boost Module is a high-performance non-isolated DC-DC converter. It is unique because it can maintain a stable output voltage regardless of whether the input voltage is higher or lower than the target. For example, if you set the output to 12V, the module will provide 12V even if the input is 5V (Boost) or 24V (Buck). This “Auto Step-Up/Down” capability is essential for applications like solar charging, where sunlight intensity changes the input voltage throughout the day.
Key Features
Universal Conversion: Automatically switches between Buck (step-down) and Boost (step-up) modes.
High-Frequency Switching: Operates at 400KHz, allowing for a smaller board size and lower output ripple.
Wide Input Range: Works with any DC source from 3.8V to 32V.
Adjustable Output: Fine-tune your voltage from 1.25V to 35V using the on-board multi-turn potentiometer.
Built-in Protection: Features MOSFET protection and thermal shutdown for increased reliability.
Technical Specifications
Feature
Specification
Module Type
Non-isolated Buck-Boost (SEPIC)
Input Voltage
3.8V – 32V DC
Output Voltage
1.25V – 35V DC (Adjustable)
Output Current
3A (Max), 2A (Recommended for continuous use)
Efficiency
Up to 94%
Switching Frequency
400 KHz
Dimensions
48mm x 25mm x 14mm
Ideal Applications
Solar Power Systems: Keep a steady 12V output while solar panel voltage fluctuates.
Battery Regulators: Maintain a constant voltage as your Li-ion or Lead-Acid battery discharges.
Car Electronics: Power 12V devices from a car battery that can spike to 14V or drop during ignition.
Lab Power Supply: A versatile tool for any hobbyist’s workbench.
Weight
2000 g
Dimensions
15 × 10 × 5 cm
