Overview

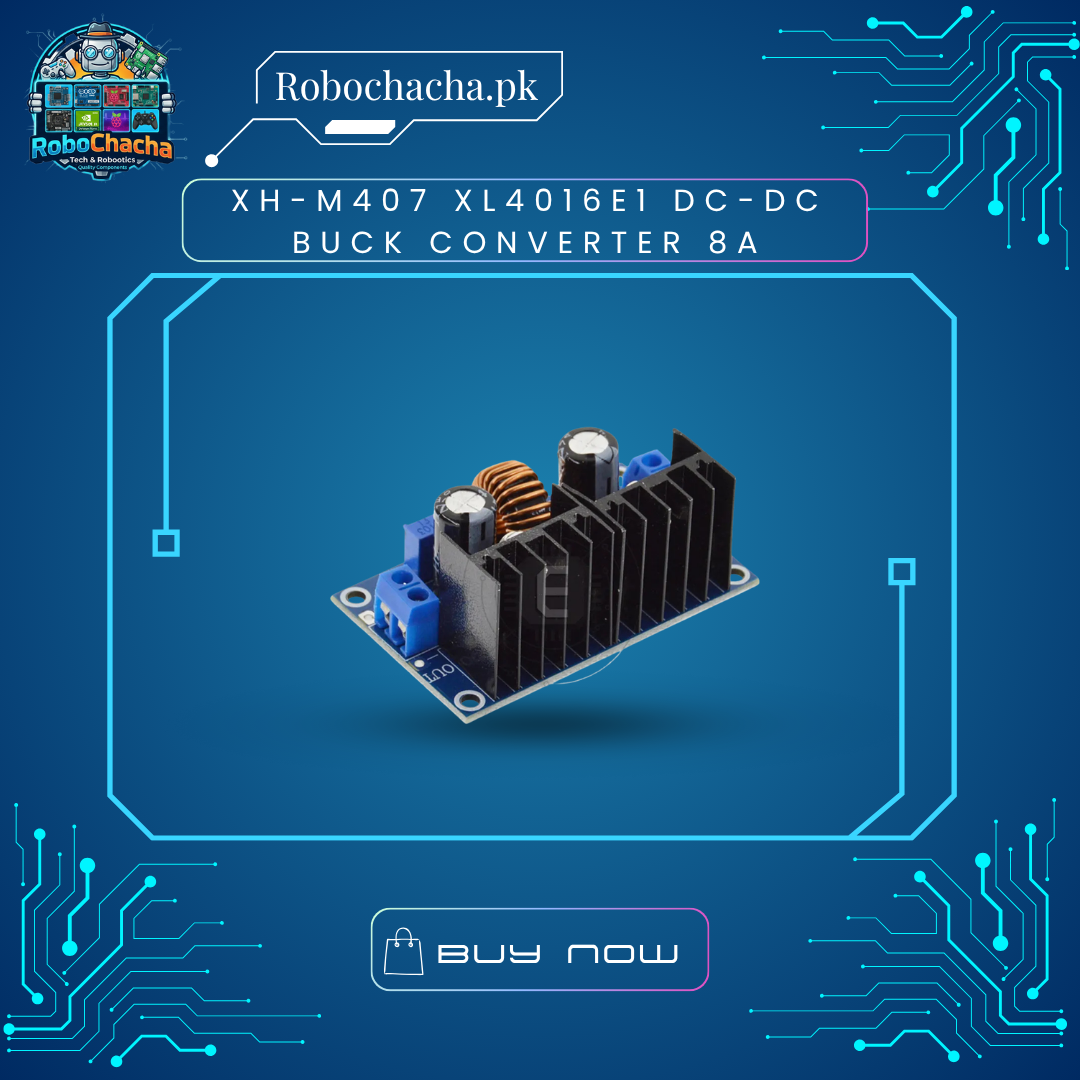

The XH-M407 is a high-power DC-DC step-down module that utilizes the XL4016E1 switching regulator chip. It is engineered to bridge the gap between hobbyist modules and industrial power supplies. The standout feature is the integrated 3-digit LED Voltmeter, which allows you to monitor your output voltage without needing a multimeter. With its massive dual heatsinks and high-quality inductor, it can output up to 200W of power, making it the perfect choice for demanding robotics and CNC projects.
Key Features
High Current Delivery: Supports up to 8A peak current (5A continuous), far exceeding the 3A limit of standard buck converters.
Built-in Voltmeter: Real-time digital display of output voltage for easy calibration and monitoring.
Exceptional Efficiency: Up to 94% conversion efficiency, meaning less energy is wasted as heat.
Superior Cooling: Equipped with large aluminum heatsinks to ensure stable operation under heavy loads.
Safe Design: Includes over-current, over-temperature, and short-circuit protection.
Technical Specifications
| Feature | Specification |
| Regulator Chip | XL4016E1 |
| Input Voltage | 4V – 40V DC |
| Output Voltage | 1.25V – 36V DC (Adjustable) |
| Max Output Current | 8A (Peak) / 5A (Long-term) |
| Max Output Power | 200W |
| Switching Frequency | 180 KHz |
| Voltmeter Accuracy | ± 0.1V |
| Dimensions | 64mm x 47mm x 28mm |
Ideal Applications
DIY Workbench Power Supply: Build a variable power supply with a digital readout.
High-Power LED Driver: Safely drive 10W, 20W, or even 50W LED arrays.
Battery Charging: Step down higher voltages to charge Lead-Acid or large Li-ion packs.
Robotics: Power high-torque DC motors that pull significant current during stall.
