Overview

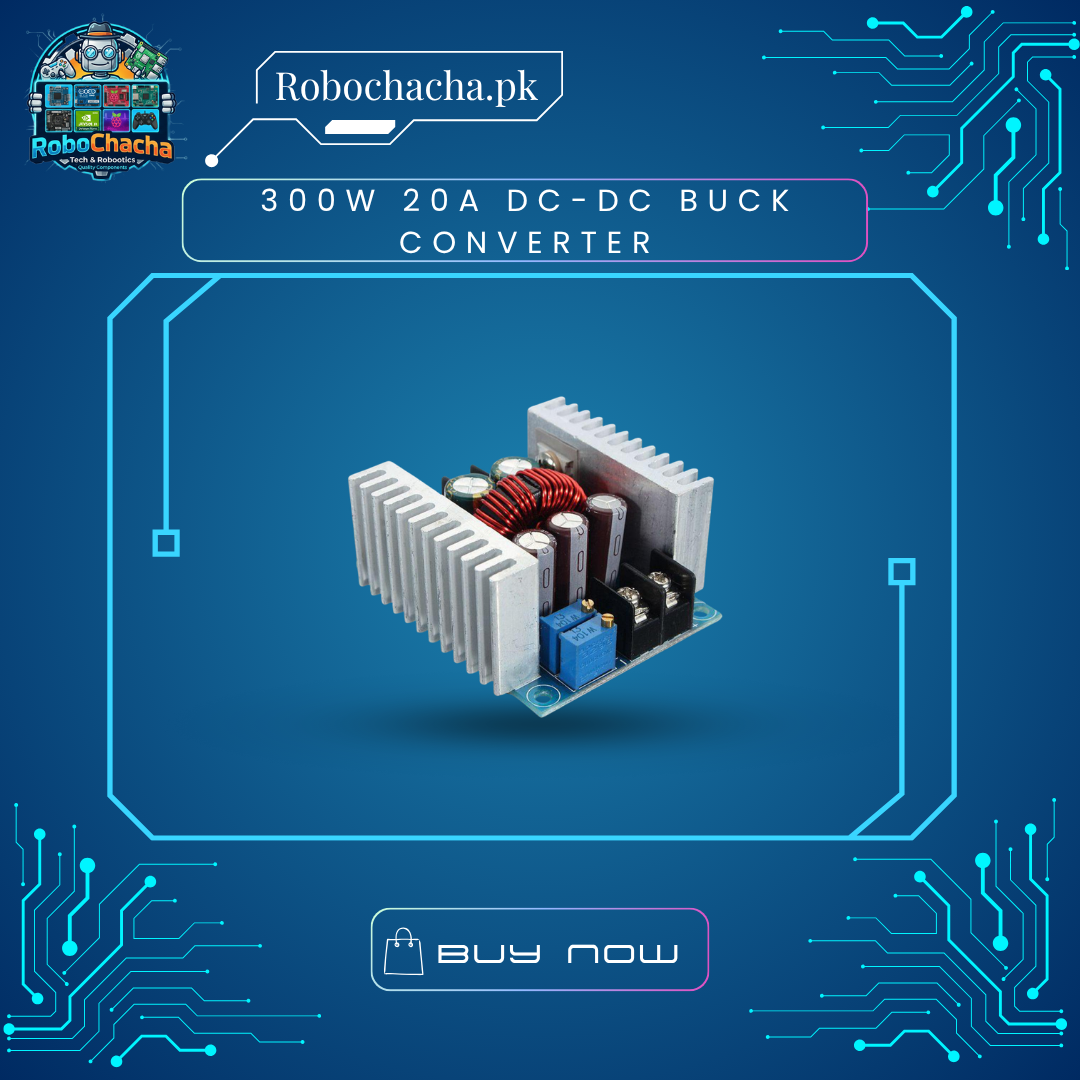

The 300W 20A Buck Converter is a high-current powerhouse designed for demanding electrical loads. It features Constant Voltage (CV) and Constant Current (CC) adjustment, making it not just a regulator, but a full-blown battery charger and LED driver. Whether you are stepping down a 24V truck battery to 12V or driving high-wattage COB LEDs, this module remains stable and cool thanks to its massive dedicated aluminum heatsinks.
Key Features
Synchronous Rectification: Dramatically reduces heat and increases efficiency (up to 96%).
Dual Adjustment Knobs: Dedicated potentiometers for both Voltage and Current limiting.
Massive Current Support: Handles up to 20A (peak), allowing you to power heavy-duty DC motors or large LED strips.
Low Ripple Output: Includes high-frequency, low-resistance electrolytic capacitors for clean power delivery.
Short Circuit Protection: Features self-recovery protection (Note: Do not short circuit for extended periods at max current).
Technical Specifications
| Feature | Specification |
| Input Voltage | 6V to 40V DC |
| Output Voltage | 1.2V to 36V DC (Adjustable) |
| Output Current | 20A Max (15A recommended for continuous use) |
| Output Power | 300 Watts Max |
| Efficiency | Up to 96% (at 24V to 12V / 20A) |
| Output Ripple | le 50mV |
| Dimensions | 60mm x 53mm x 27mm |
Ideal Applications
High-Power LED Driver: Safely drive 50W or 100W LED chips using the Constant Current (CC) mode.
Battery Charging: Ideal for charging Lithium, Lead-Acid, or Ni-Cd packs from a higher voltage source.
Solar Regulator: Step down high-voltage solar panel output to a steady battery-charging voltage.
Vehicle Power: Power 12V appliances in a 24V bus or truck.
