Overview

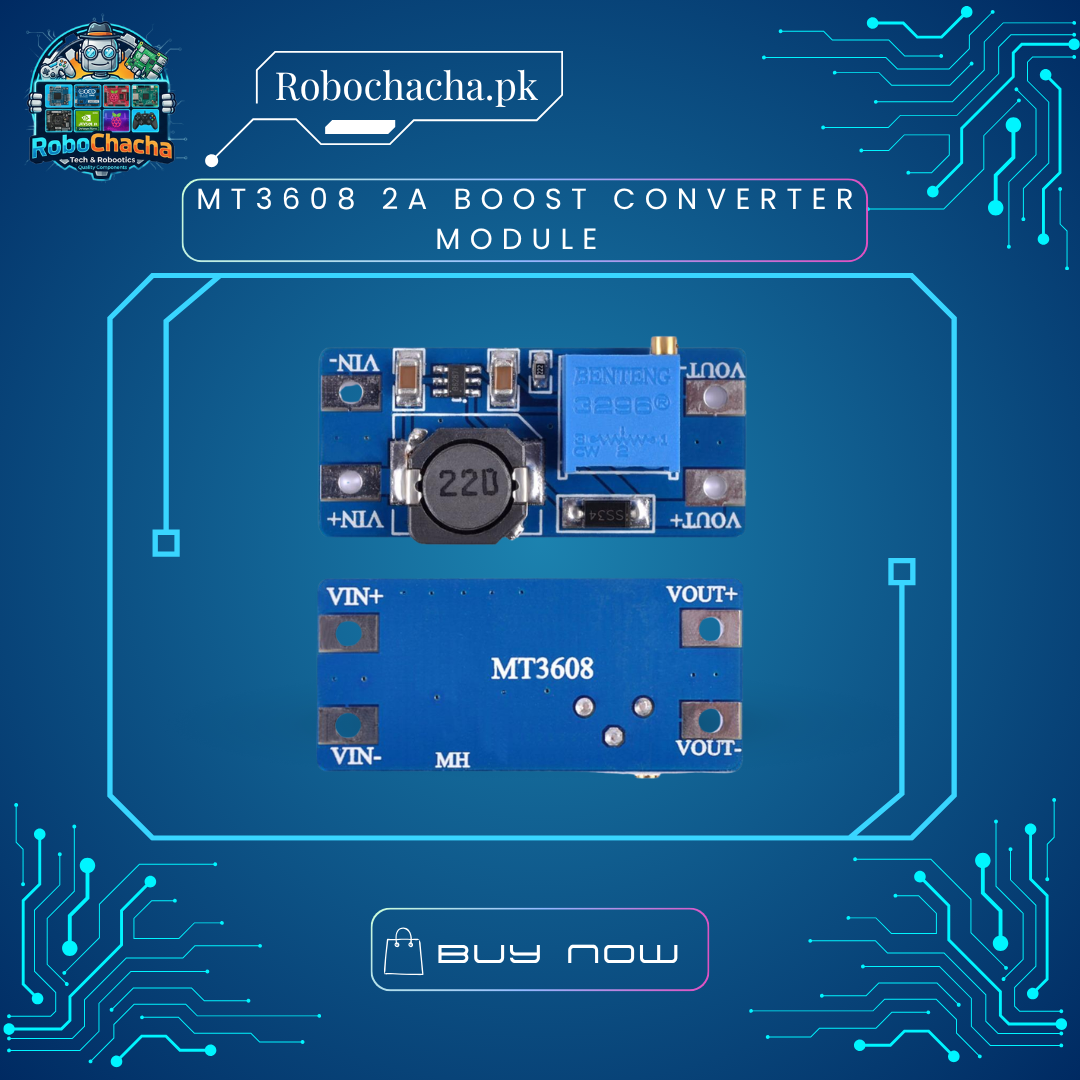

The MT3608 DC-DC Step-Up Module is the go-to solution for hobbyists who need to increase voltage in a tight space. Whether you are building a portable power bank or driving 12V fans from a USB port, this module handles the job with up to 93% efficiency. It features a multi-turn potentiometer for precise voltage adjustment and can deliver a peak current of 2A.
Key Features
Ultra-Compact: One of the smallest boost converters on the market—ideal for wearable tech and micro-robotics.
Wide Output Range: Steps up any input from 2V up to a maximum of 28V.
High Efficiency: Uses a high-frequency (1.2MHz) switching architecture to minimize energy loss.
Easy Integration: Simple 4-pin layout (Vin+, Vin-, Vout+, Vout-) makes it breadboard and PCB friendly.
Technical Specifications
| Feature | Specification |
| Maximum Output Current | 2A (1A recommended for continuous use) |
| Input Voltage | 2V – 24V DC |
| Maximum Output Voltage | 5V – 28V DC (Adjustable) |
| Efficiency | Up to 93% |
| Switching Frequency | 1.2 MHz |
| Dimensions | 36mm x 17mm x 14mm |
