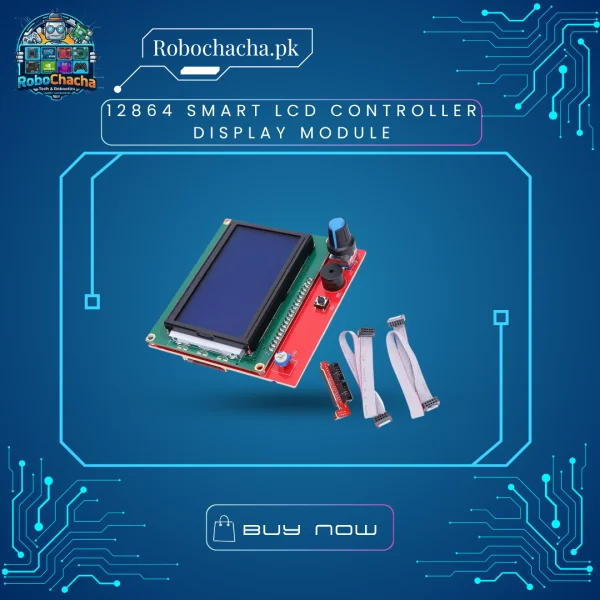

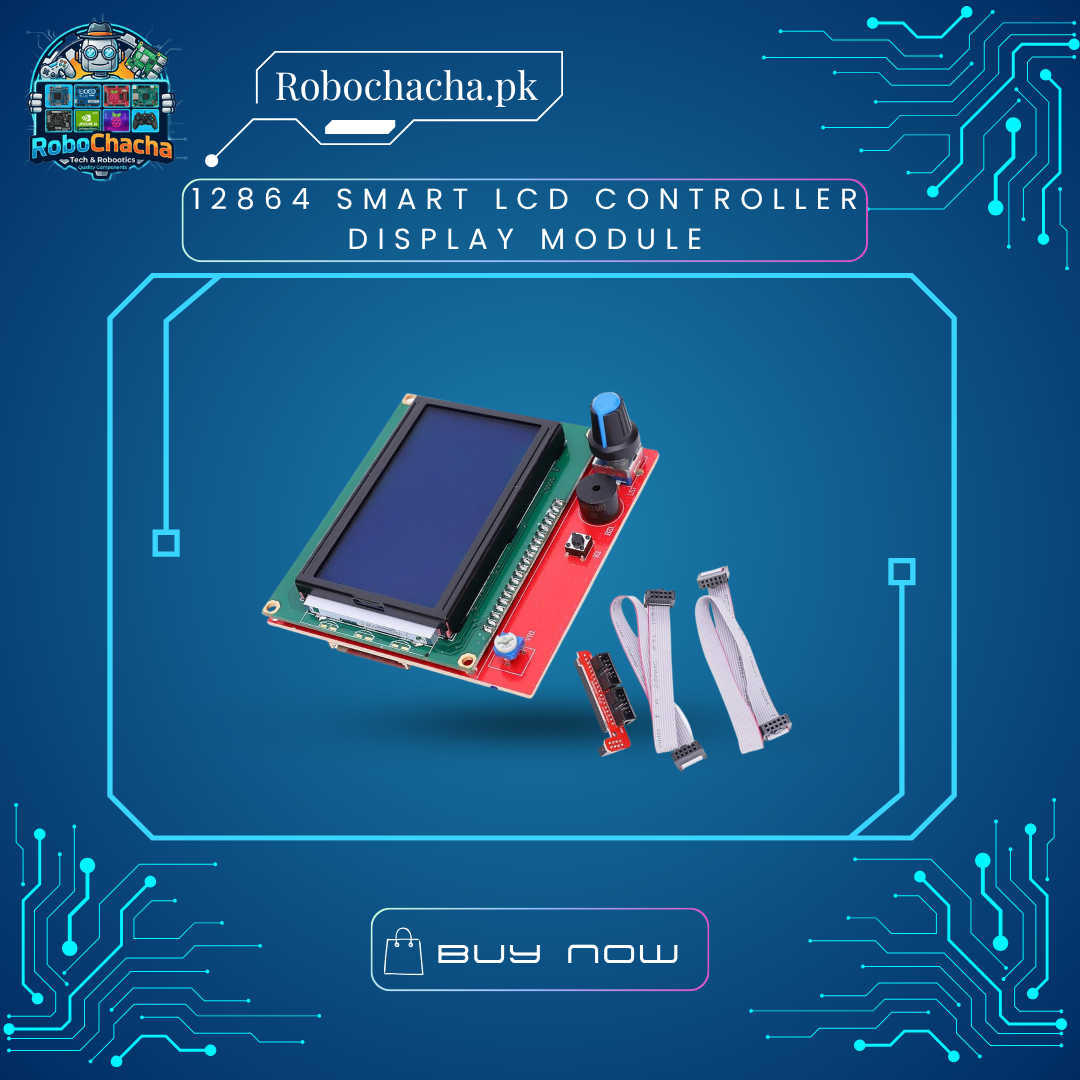

12864 Smart LCD Controller Display Module with Adapter and Cables for RAMPS 1.4 Arduino Mega

Overview

Take full operational control of your DIY 3D printer or CNC machine with the 12864 Graphical Smart LCD Controller. This module provides a complete user interface standalone solution, allowing you to calibrate axes, preheat hotends, load filament, and execute G-code directly without keeping a computer or laptop constantly connected via USB. Designed as a direct drop-in expansion for the RAMPS 1.4 and Arduino Mega 2560 ecosystem, it features a crisp blue-backlit graphical display, an intuitive click-encoder dial, and a built-in emergency reset button.

Key Features

• Full Graphical Display: Large 128×64 resolution screen displays real-time coordinates, nozzle/bed temperatures, print progress percentages, and current SD card files.

• Integrated SD Card Slot: Located conveniently on the side of the board; simply slice your models, save them to an SD card, plug it in, and print untethered.

• Rotary Encoder Navigation: A smooth, heavy-duty click-encoder knob allows fast, tactile menu scrolling and quick setting changes.

• Emergency Reset Button: Dedicated hardware reset button safely halts the machine immediately if a print fails or a mechanical collision occurs.

• Plug-and-Play RAMPS Interface: Comes complete with a Smart Adapter shield that sits directly on top of the RAMPS 1.4 board, eliminating manual wiring mistakes.

Technical Specifications
