Overview

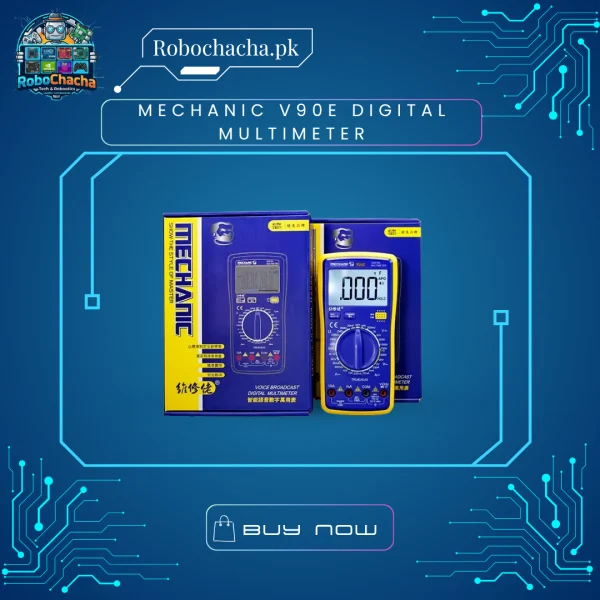

The Mechanic V90E is a professional-grade, high-precision digital multimeter engineered for the modern electronics technician. Whether you are hunting for a short circuit on an iPhone motherboard or measuring voltage rails on a MacBook, this meter provides the accuracy and speed required for micro-diagnostics. With its large, backlit display and rugged “anti-drop” casing, it is built to survive a busy workbench.
Key Features
Instant Continuity: Zero-lag buzzer for tracing “short-to-ground” faults on crowded PCBs.
Auto-Ranging Intelligence: No need to guess the range; the meter automatically adjusts for Volts, Ohms, and Amps.
NCV (Non-Contact Voltage): Safely detect live AC wires without making physical contact.
Temperature Measurement: Includes a K-type thermocouple to check the actual heat of your soldering iron or hot air gun.
Ergonomic Design: Features a built-in kickstand and a high-contrast LED backlight for working in low-light conditions.
Technical Specifications
| Feature | Specification |
| Model | Mechanic V90E |
| Max Display | 1999 Counts / 5999 Counts (Model Dependent) |
| DC Voltage | 200mV to 1000V |
| AC Voltage | 2V to 750V |
| Resistance | 200Ω to 20MΩ |
| Power Source | 9V Battery (Included) |
| Safety Rating | CAT III 600V |
| Features | Data Hold, NCV, Backlight, Diode Test, Continuity |
Why “Mechanic” for Phone Repair?
General-purpose multimeters are often too slow for motherboard work. Mechanic multimeters are tuned for diode mode testing, which is the primary way technicians “map” a board to find faulty ICs or capacitors. It’s the professional standard in the mobile repair community.
