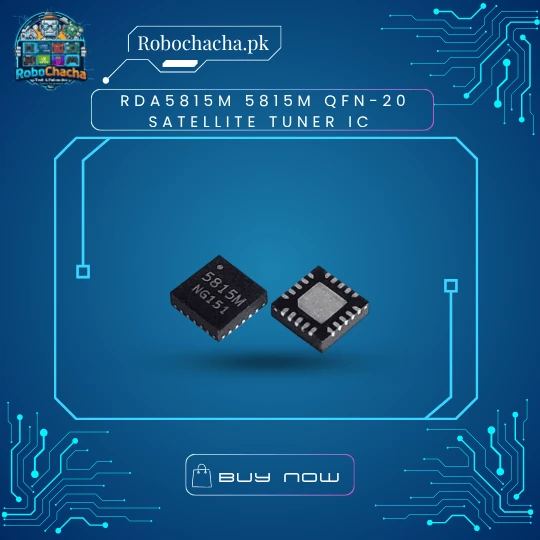

RDA5815M 5815M QFN-20 Satellite Tuner IC – High-Performance Signal Receiver for DVB-S2 in Pakistan

Overview

The RDA5815M is a fully integrated satellite tuner specifically designed for DVB-S, DVB-S2, and ABS-S broadcast standards. It simplifies the design of satellite set-top boxes by integrating the LNA (Low Noise Amplifier), Tuner, and VCO into a single silicon chip. For repair experts, this is the primary IC responsible for “No Signal” or “Weak Signal” faults on modern HD satellite receivers when the external dish and LNB are verified to be working.

Key Features

• Wide Frequency Range: Covers the standard satellite intermediate frequency (950MHz to 2150MHz).

• Direct Conversion Architecture: Reduces the need for bulky external filters, allowing for smaller PCB designs.

• High Sensitivity: Features an on-chip low-noise amplifier (LNA) to catch weak signals without distortion.

• Low Power Consumption: Optimized for 3.3V operation, keeping the internal temperature of the receiver low.

• Standard I2C Interface: Allows for easy digital control and tuning via the main system-on-chip (SoC).

Technical Specifications

Common Applications

• Satellite Receivers (STB): Replacement IC for Neosat, Tiger, and StarTrack HD receivers.

• DVB-S2 Computer Cards: Repairing PC-based satellite tuners.

• Signal Meters: Maintaining professional satellite alignment tools.
