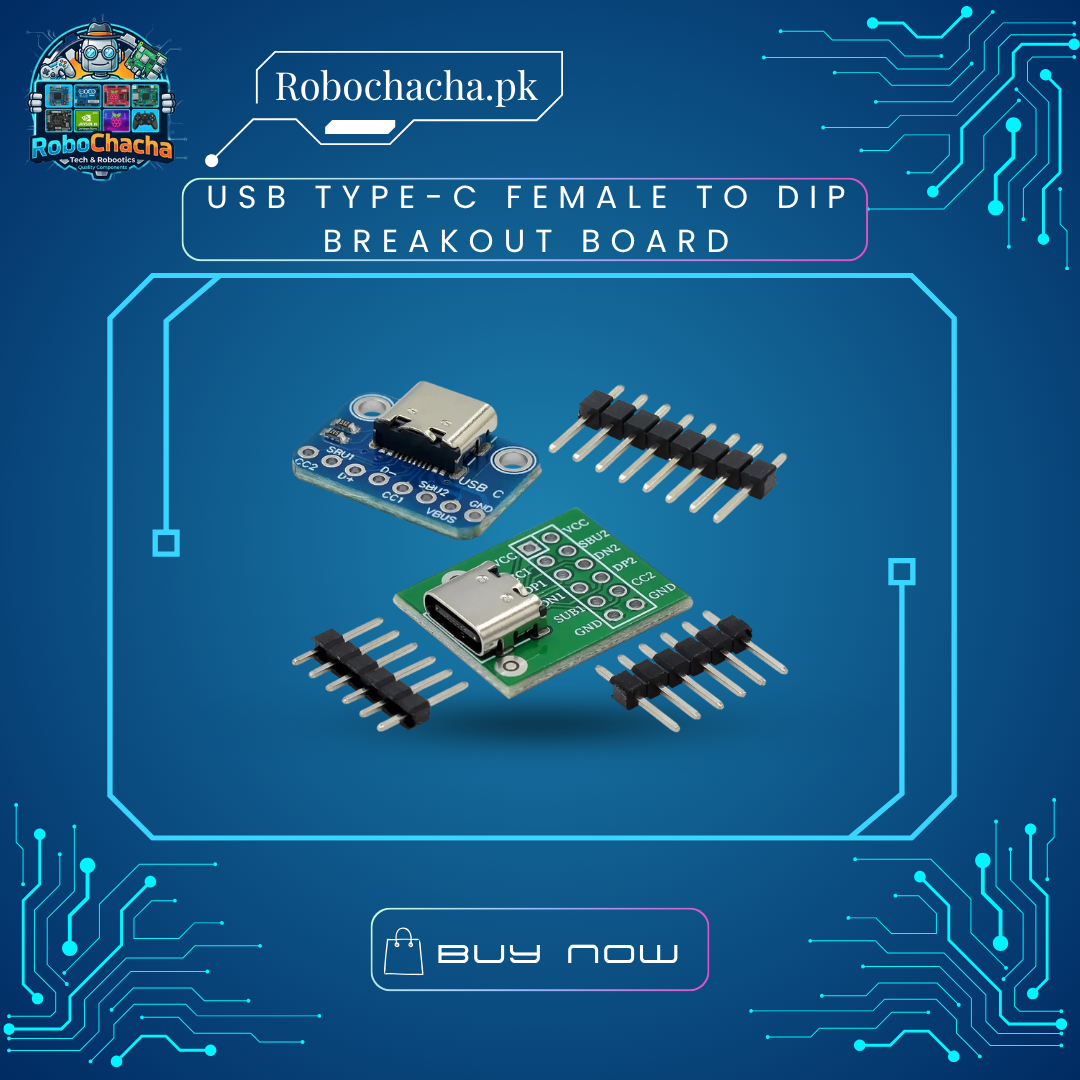

The USB-C Female to DIP Breakout Board is designed for makers, students, and engineers who need to integrate modern USB Type-C connections into their custom circuits. By converting the tiny, hard-to-solder USB-C pads into standard 2.54mm (0.1″) pitch header pins, this board makes it easy to use Type-C for power delivery, serial communication, or data transfer in your DIY projects.
Key Features
Universal Conversion: Converts the complex USB-C footprint into standard DIP pin-outs, making it breadboard-compatible.
Compact Footprint: Small enough to fit into the tightest project enclosures while providing a secure mounting point.
High-Quality PCB: Sturdy mounting holes and clearly labeled pins (VBUS, GND, CC1, CC2, D+, D-) for easy identification.
Durable Connectivity: Provides a stable mechanical anchor for the USB-C port, preventing stress on your delicate PCB traces.
Versatile Use: Ideal for replacing older Micro-USB/Mini-USB ports in existing gear or creating new power-delivery projects.
Technical Specifications
Feature
Specification
Connector Type
USB Type-C Female
Output Pitch
2.54mm (0.1″ standard)
Mounting
Breadboard-friendly DIP
Material
FR-4 PCB with high-quality solder mask
Applications
Power distribution, USB-to-Serial, Custom Charging
