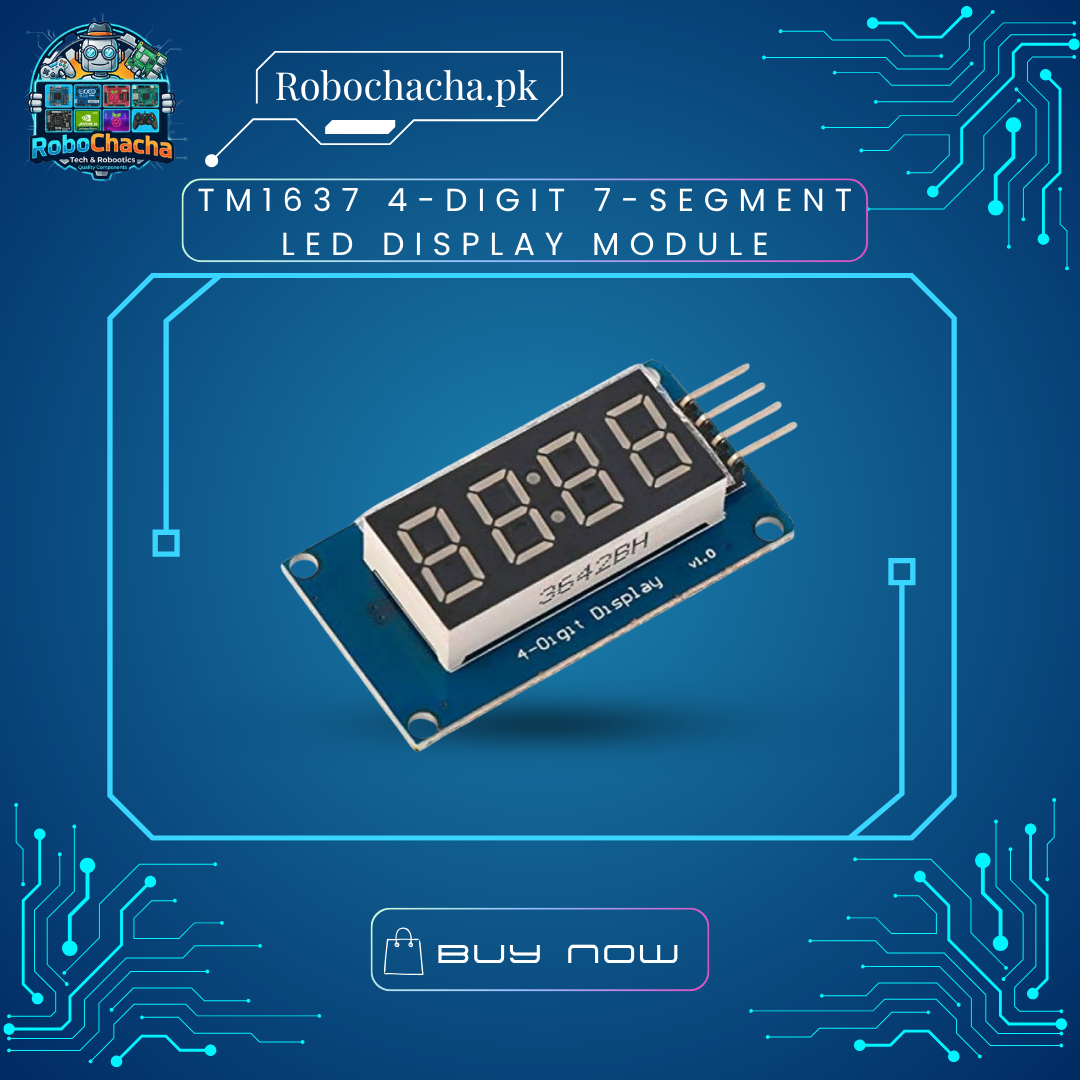

TM1637 4-Digit 7-Segment LED Display Module – 2-Pin Digital Clock & Timer Display for Arduino

Overview

The TM1637 4-Digit Display Module is an affordable, compact alphanumeric multiplexed display solution. It features four bright red 7-segment digits alongside a central clock colon (:), making it ideal for timekeeping projects. Utilizing an I2C-like 2-wire serial interface (CLK and DIO), it allows your Arduino, ESP32, or Raspberry Pi Pico to control the readout while preserving your valuable GPIO pins for other sensors and actuators.

Key Features

• Ultra-Efficient 2-Wire Interface: Requires only a Clock (CLK) and Data (DIO) line to interface with your microcontroller.

• Integrated Central Colon: Perfect for displaying hours/minutes, countdown timers, or scoreboards.

• On-Board Driver Chip: The embedded TM1637 IC manages display refresh and multiplexing automatically, ensuring zero flicker without bogging down your code.

• Adjustable Brightness: Supports 8 software-programmable brightness levels via code to adapt to indoor ambient light or night-mode setups.

• Pre-Soldered Header Pins: Ready to drop straight onto standard breadboards or connect via female-to-male jumper wires.

Technical Specifications

Simple Connection Guide

• VCC: Arduino 5V / 3.3V

• GND: Arduino GND

• CLK: Any Digital Pin (e.g., D2)

• DIO: Any Digital Pin (e.g., D3)
