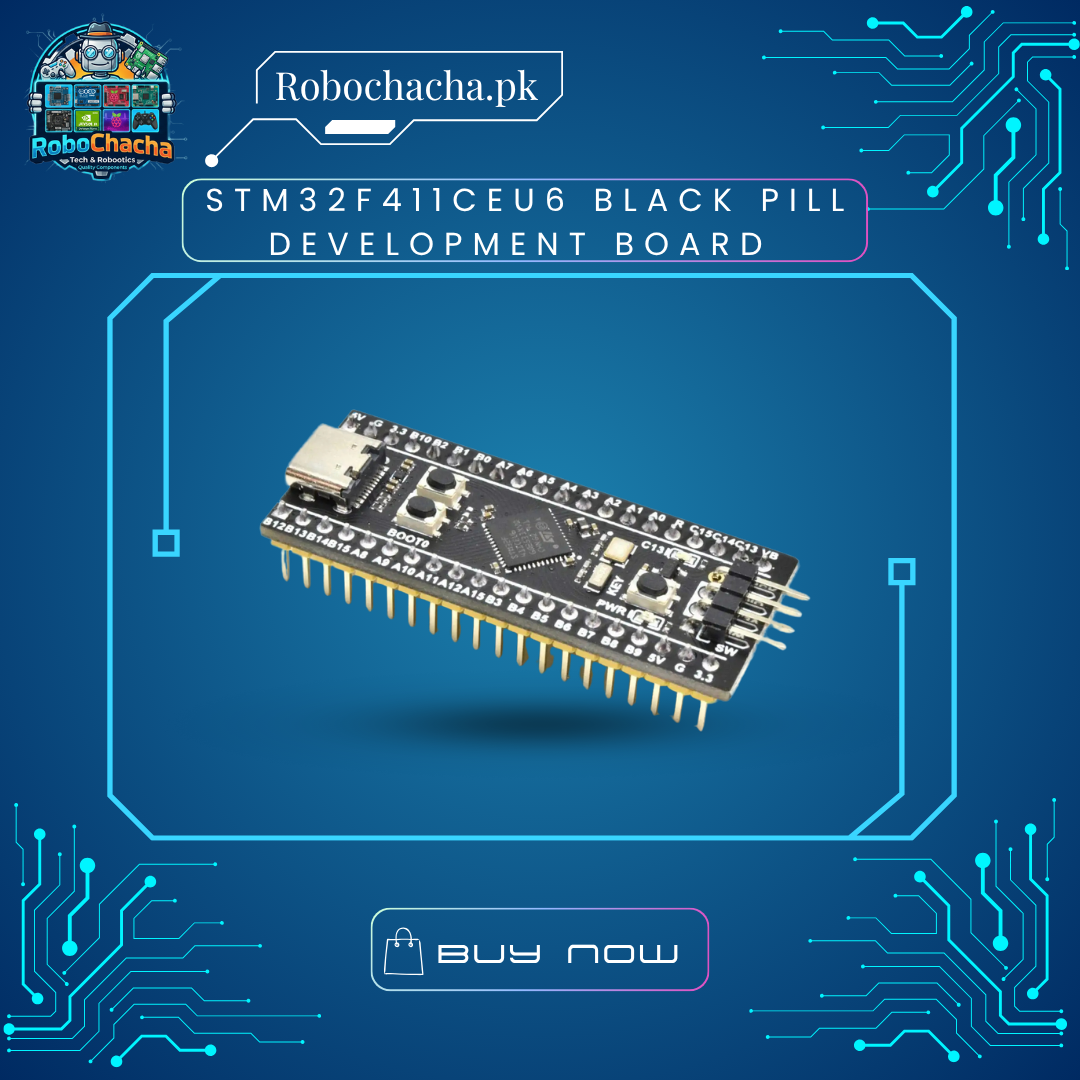

When 8-bit Arduino boards run out of processing power or memory, the STM32F411CEU6 Black Pill steps in. Operating at an impressive 100MHz, this board offers a massive leap forward in processing efficiency. It features an integrated Floating Point Unit (FPU), making it highly capable of running complex mathematical calculations on the fly—such as digital signal processing (DSP), PID control loops for robotic arms, sensor fusion filtering, and real-time audio analysis.
Key Features
Blazing Fast Processing: Driven by an ARM 32-bit Cortex-M4 core running at 100MHz with DSP instructions.
Modern Type-C Interface: Replaces old Micro-USB connections with a robust, modern USB Type-C port for power delivery and native USB communication.
Generous On-Chip Memory: Packed with 512 KB of Flash memory and 128 KB of SRAM to easily accommodate complex firmware libraries.
Rich Peripheral Layout: Equipped with high-speed SPI, I2C, USART, and multi-channel 12-bit Analog-to-Digital Converters (ADC) for high-precision sensor telemetry.
Black PCB Aesthetic: Built on a premium, compact black circuit board design that fits directly into standard breadboards.
Technical Specifications
Feature
Specification
Core Processor
ARM Cortex-M4 with FPU
Maximum Clock Speed
100 MHz
Flash Memory
512 Kilobytes
SRAM
128 Kilobytes
Operating Voltage
3.3V Logic Level (Board features 5V to 3.3V LDO Regulator)
USB Connector
USB Type-C (Supports OTG)
ADC Resolution
12-bit (Up to 16 channels)
Timers
Up to 11 timers (including advanced motor control timers)
