Overview

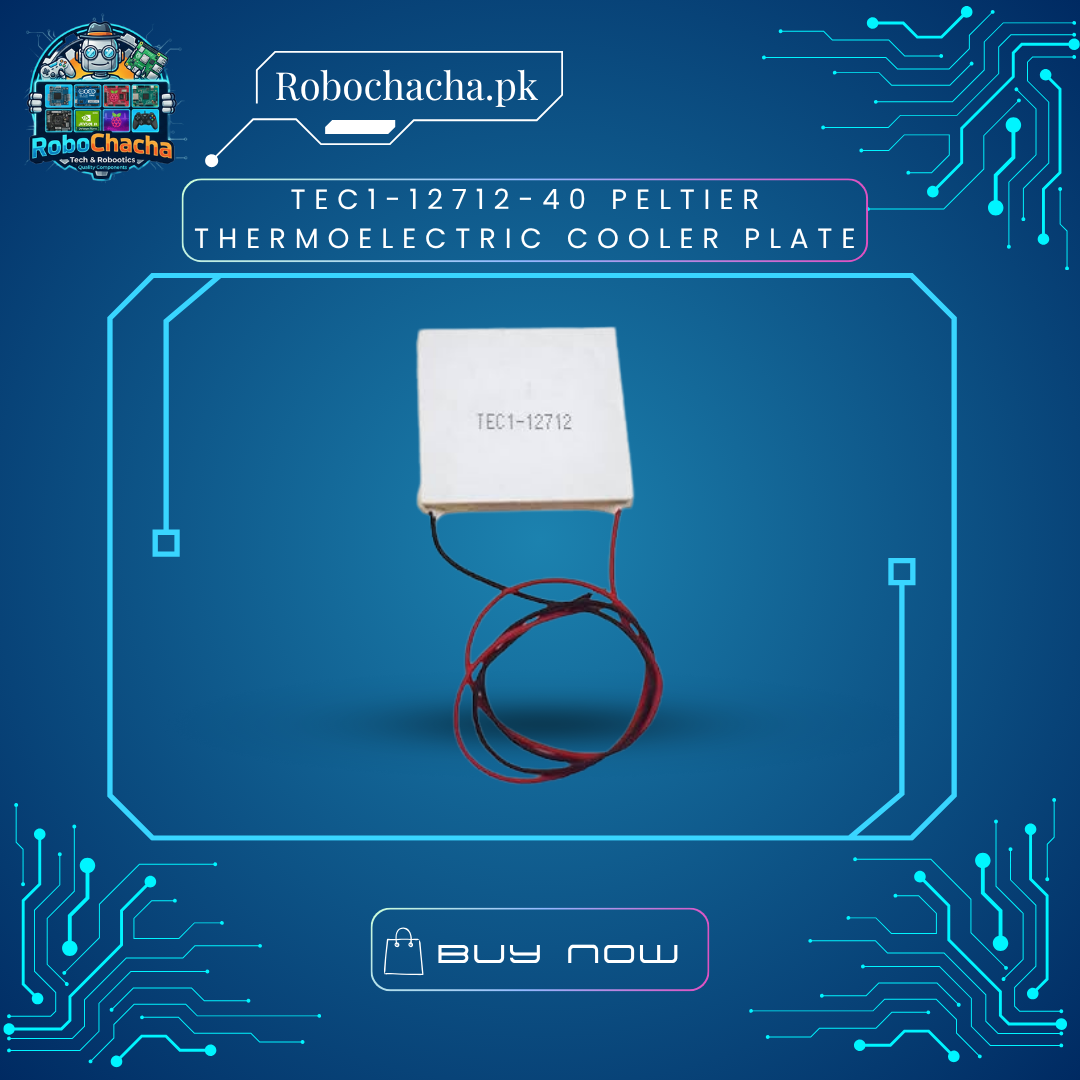

The TEC1-12712 Thermoelectric Cooler is engineered for high-intensity thermal applications. By utilizing 127 internal semiconductor couples, this 40mm x 40mm plate can move a massive amount of heat quickly. While smaller modules are for soda cans, the 12712 is capable of chilling larger volumes of water or air, making it ideal for high-end PC water cooling loops, medical-grade cold storage prototypes, and advanced thermodynamics research.
Key Features
Maximum Heat Flux: 12-Amp capacity provides up to 150W of cooling power—the highest in the standard 40mm series.
Instant Freezing: Capable of creating a massive temperature differential ($T_{max}$ up to 67°C) almost instantly upon powering.
Compact & Rugged: Standard 40x40mm size allows for easy integration into existing heatsink setups.
Silent Solid-State Operation: No moving parts, no vibration, and no hazardous refrigerants.
Versatile Thermal Control: Can be used for both heating and cooling by simply reversing the DC polarity.
Technical Specifications
| Feature | Specification |
| Model | TEC1-12712 |
| Operating Voltage | 12V DC (Max 15.4V) |
| Current (Imax) | 12A |
| Cooling Power ($Q_c$ Max) | ~136W – 150W |
| Internal Resistance | 1.0 ~ 1.2 Ω |
| Operating Temp Range | -50°C to +80°C |
| Dimensions | 40mm x 40mm x 3.3mm |
| Pressure Force | 150-300 lb/sq inch |
Ideal Applications
Large DIY Water Chillers: For aquariums, hydroponics, or PC water loops.
Industrial Cooling: Thermal stabilization for laser diodes and high-end sensors.
Portable Vaccine Coolers: Creating stable, ultra-cold environments for medical transport.
High-Performance Overclocking: Direct-die cooling for extreme PC performance.
