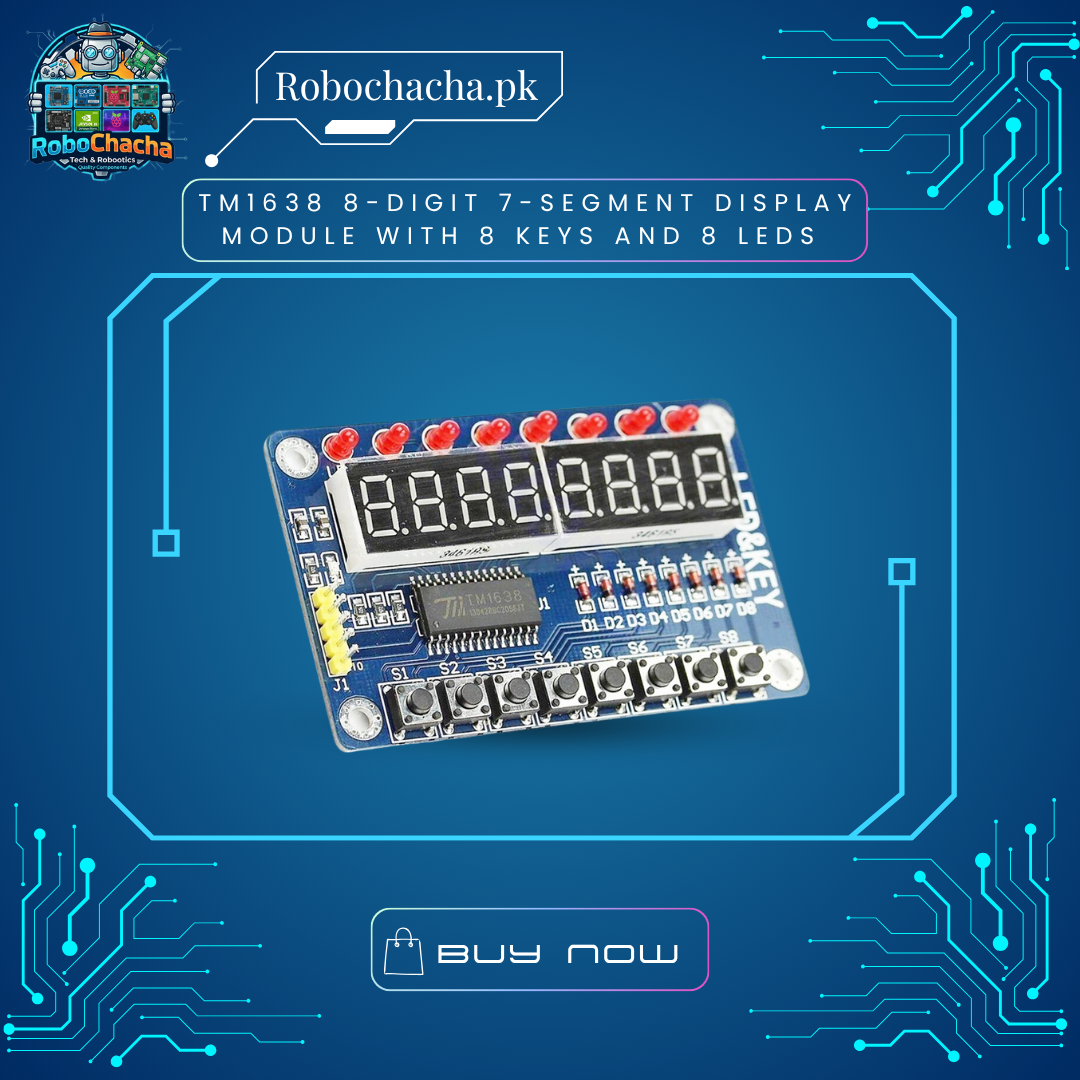

TM1638 8-Digit 7-Segment Display Module with 8 Keys and 8 LEDs – 3-Pin UI Control Board for Arduino

Overview

The TM1638 Input/Output Control Board is an all-in-one control panel module designed for complex electronics prototyping, industrial control simulators, and robotic terminal menus. Powered by the efficient TM1638 drive IC, this board simultaneously handles an 8-digit numeric readout, an 8-LED progress/status bar, and an 8-key input pad. Because the chip manages all display multiplexing and key-debounce logic internally, your microcontroller remains completely free to run your core software loops.

Key Features

• Complete 3-in-1 UI Solution: Combines digital output (7-segment), visual indicators (LEDs), and user inputs (buttons) on a single PCB.

• Ultra-Efficient 3-Pin Control: Uses just three digital data lines (STROBE, CLOCK, DATA) to read inputs and write outputs.

• Daisy-Chain Capable: Multiple TM1638 modules can be linked together to create expansive dashboard control panels.

• On-Board Key Debouncing: The TM1638 hardware automatically filters out switch noise, giving you clean, instant button-press registers in your code.

• Adjustable Brightness Control: Software-configurable brightness states allow you to dim or brighten the display and LEDs to suit ambient room lighting.

Technical Specifications

Simple Microcontroller Wiring Guide

• VCC $\rightarrow$ Arduino 5V

• GND $\rightarrow$ Arduino GND

• STB (Strobe) $\rightarrow$ Any Digital Pin (e.g., D4)

• CLK (Clock) $\rightarrow$ Any Digital Pin (e.g., D3)

• DIO (Data) $\rightarrow$ Any Digital Pin (e.g., D2)
