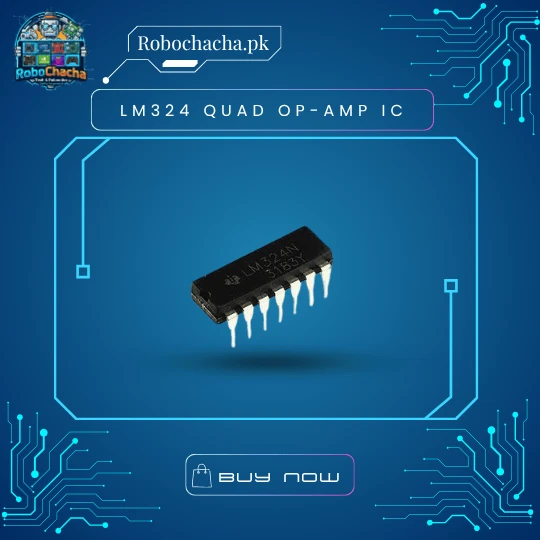

Name: LM324 Quad Op-amp IC – Low Power Quadruple Operational Amplifier (DIP-14)
SKU: IC-LM324-DIP14
Price: 25 PKR
Availability: InStock

LM324 Quad Op-amp IC – Low Power Quadruple Operational Amplifier (DIP-14)

₨ 25

Order on WhatsApp

In stock at our Lahore shop · pick up today Robochacha.pk, Shop 6, 2nd floor, Sheikh Rehmatullah Market, Hall Road, Lahore · open Mon–Sat 10 AM–9 PM (Sunday closed) · Directions

Cash on Delivery all over Pakistan
Fast delivery by TCS, or pick up from Hall Road, Lahore
Tested & genuine, checked before dispatch
Easy returns - see our policy

Overview

The LM324 Quad Op-amp IC consists of four independent, high-gain, internally frequency-compensated operational amplifiers. It is engineered to operate from a single power supply (as low as 3V) but can also function with split/dual power supplies. Its low power drain and wide common-mode input voltage range make it ideal for battery-operated devices, transducer amplifiers, and DC gain blocks.

Key Features

4-in-1 Design: Four separate operational amplifiers in one compact 14-pin DIP package.
Single Supply Operation: Eliminates the need for a dual (+/-) power supply in most circuits.
Wide Voltage Range: Works reliably from 3.0V to 32V (Single) or ±1.5V to ±16V (Dual).
Low Power Consumption: Designed for high efficiency, minimizing battery drain in portable projects.
Internally Compensated: Easy to use for beginners; no external compensation capacitors required.

Technical Specifications

Feature	Specification
Package Type	DIP-14 (Through-Hole)
Number of Op-amps	4 Independent Amplifiers
Supply Voltage	3.0V to 32.0V
Input Offset Voltage	2 mV (Typical)
Bandwidth (Unity Gain)	1.2 MHz
Operating Temperature	0°C to 70°C
Common Mode Range	Includes Ground (V-)
